Inspection Procedure 5: DIAGNOSIS MODE Cannot Be Made An Entry - Vehicles With Radio And CD Player: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

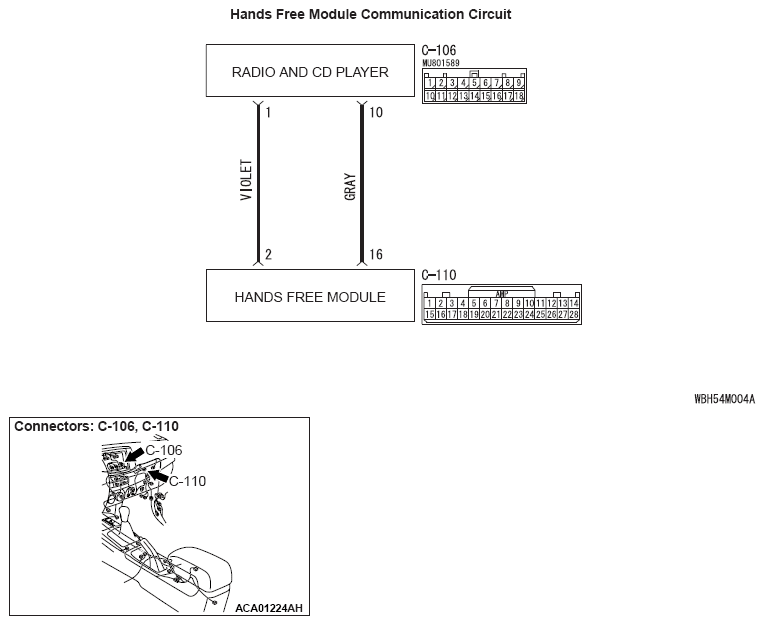

Fig 1: Hands Free Module Communication Circuit
G08296336Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
