Repair Procedure Of Bracket B

WARNING: This page is about a different variant/trim than selected.

Cut off the damaged bracket B.

Fig 1: Identifying Damaged Bracket B
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the remaining bracket cut surface using the sandpaper.

Fig 2: Identifying Bracket Cutting Surface
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fix the repair bracket B to the headlight assembly using the tapping screw.

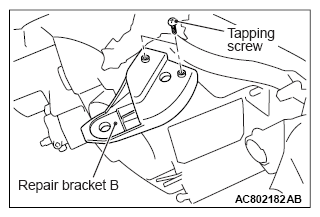

Fig 3: Identifying Repair Bracket B And Tapping Screw
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
