Repair Procedure Of Bracket A

WARNING: This page is about a different variant/trim than selected.
  1. Cut the damaged bracket A so that it has the larger dimension than the dimension shown in the illustration from the mounting boss seating face.
  2. Smoothen the bracket cut surface using the sandpaper.

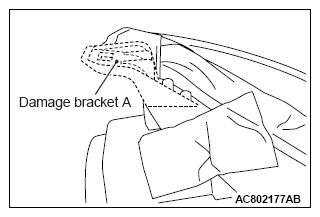

    Fig 1: Identifying Damaged Bracket A
    G08295956Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

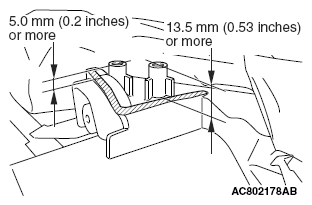

    Fig 2: Identifying Bracket Cutting Surface
    G06673404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Fix the repair bracket A to the headlight assembly using the tapping screw.
    Fig 3: Identifying Repair Bracket A And Tapping Screw
    G05906427Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
