Home >> Mitsubishi >> 2012 >> Lancer Evolution GSR >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 53 (Liftgate - Lancer SPORTBACK) >> Liftgate Handle And Latch >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

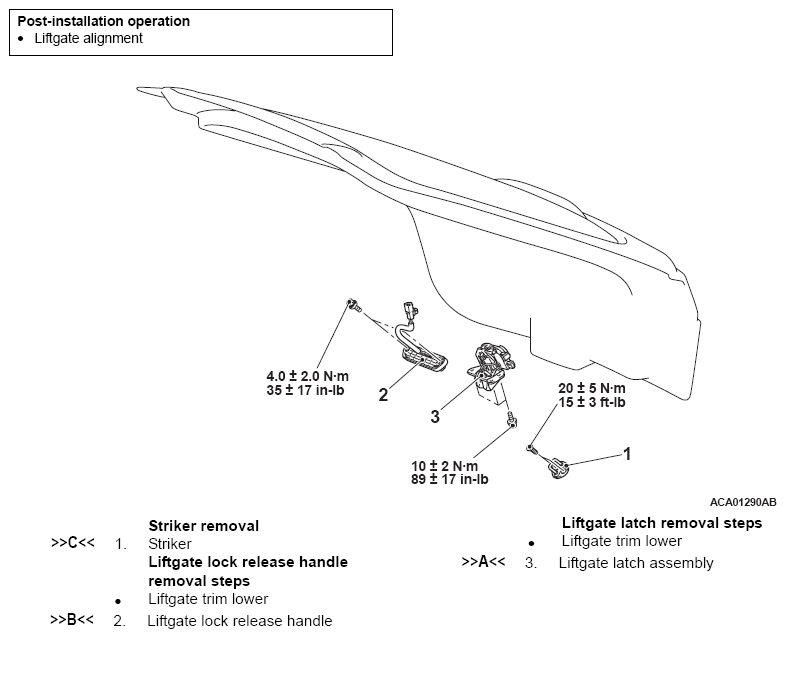

Fig 1: Liftgate Handle And Latch Assembly With Torque Specifications
G08294530Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
