DTC C1046: FL Wheel Speed Sensor Control Phase Time Exceeded: Notes

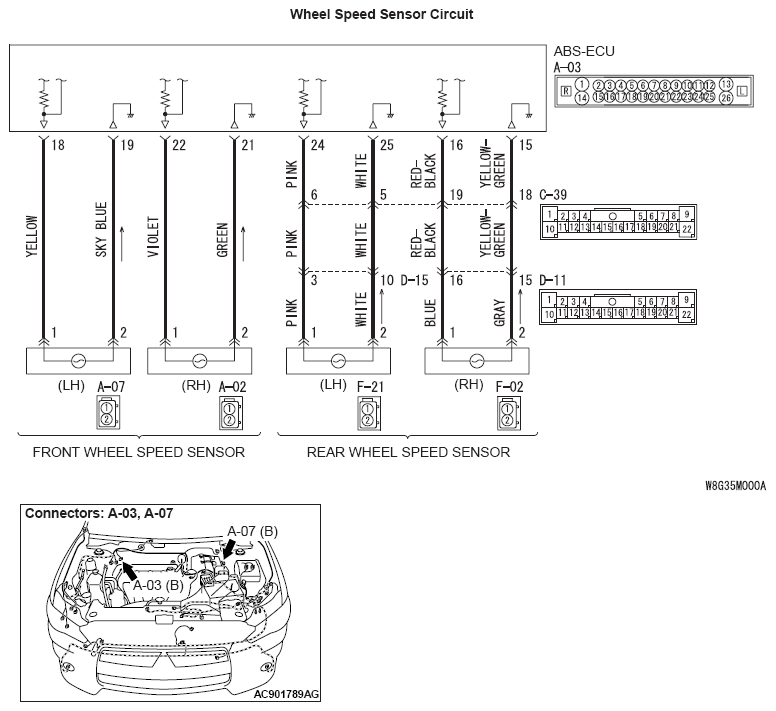

Fig 1: Wheel Speed Sensor - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS LINE DIAGNOSTIC FLOW ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
