Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

Never attempt to disassemble or repair the side-air bag modules. If faulty, replace it.
Do not drop the side-air bag modules or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
Do not expose the side-air bag modules to temperatures over 93°C (200°F).
After the air bag deployment, replace the air bag module with a new one.
Wear gloves and safety glasses when handling air bags that have already deployed.
Certain components of this vehicle, such as air bag modules and seat belt pre-tensioners, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.
An undeployed side-air bag module should only be disposed of in accordance with the procedures (Refer to UNDEPLOYED AIR BAG MODULE DISPOSAL ).
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (On-vehicle Service ON-VEHICLE SERVICE ).

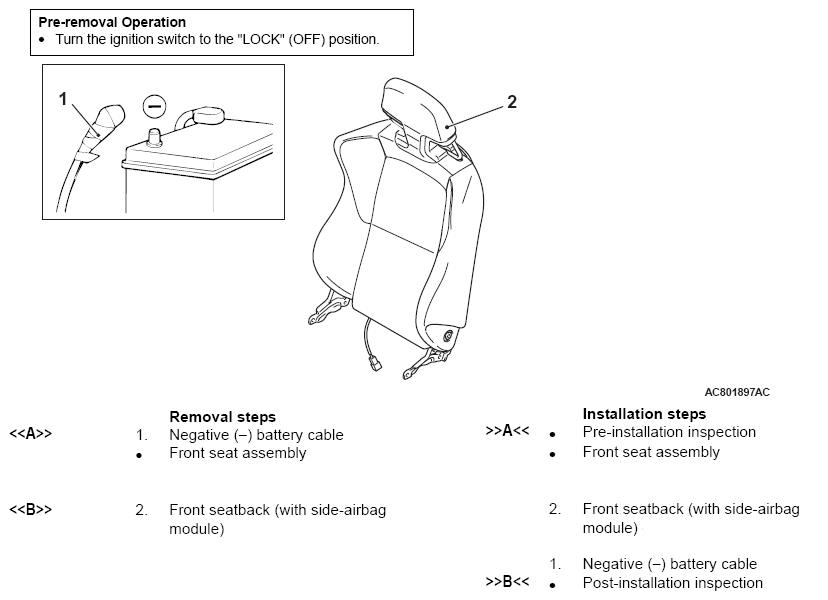

Fig 1: Front Seatback (With Side-Airbag Module)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
