Section 4 (Supplemental Restraint System (SRS) - Lancer)
>>
General Information
>>
Schematic
General Information: Schematic
WARNING:
This page is about a different variant/trim than selected.

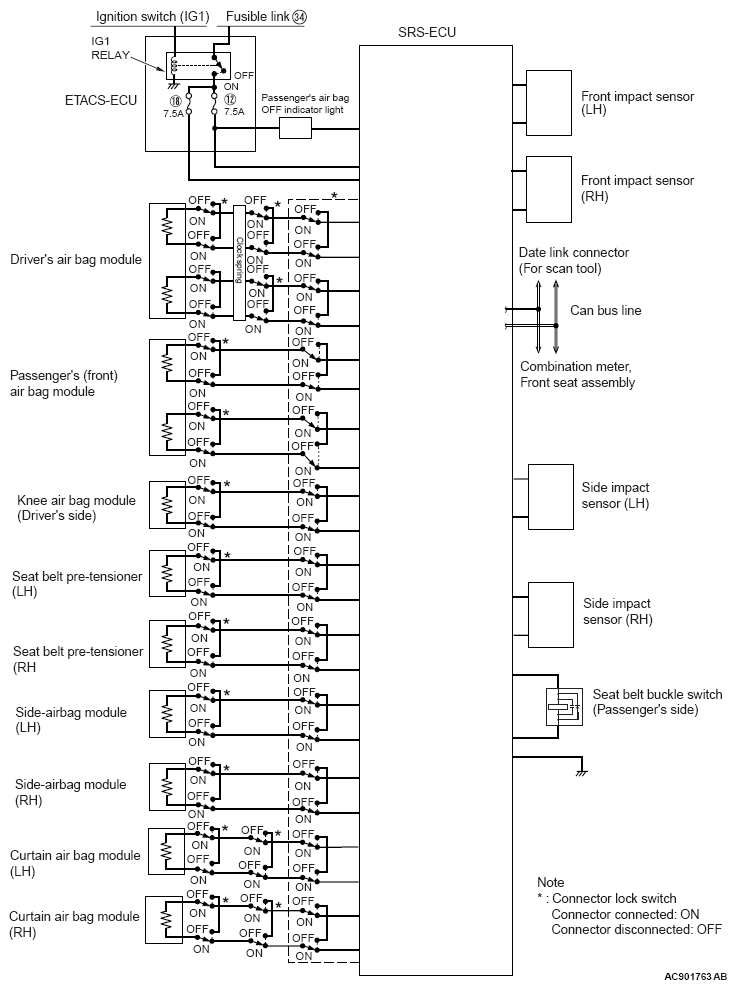

Fig 1: Supplemental Restraint System (SRS) Schematic
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
