Troubleshooting Steps

WARNING: This page is about a different variant/trim than selected.

If an attempt is made to solve a problem without going through correct steps for troubleshooting, the symptoms could become more complicated, resulting in failure to determine the causes correctly and making incorrect repairs. The four steps below should be followed in troubleshooting.

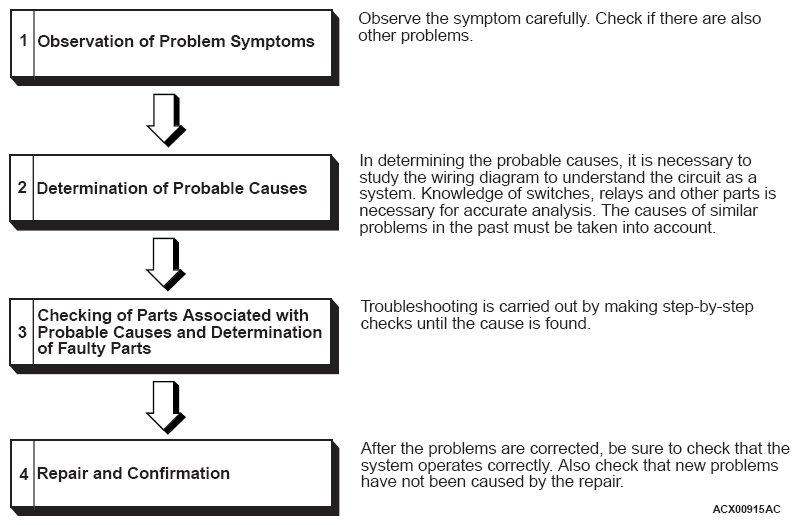

Fig 1: Diagnosis And Troubleshooting Work Flow Chart
G08286923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
