How To Diagnose: Inspection

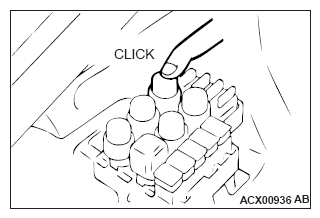

Fig 1: Pushing Down Relay Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Sight and sound checks

   Check relay operation, blower motor rotation, light illumination, etc. Listen for a "click" when some relay covers are pushed down.

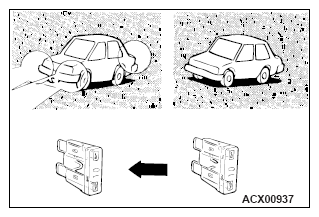

   Fig 2: Identifying Fuse Condition

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Simple checks

   For example, if a headlight does not come on and a faulty fuse or poor grounding is suspected, replace the fuse with a new one. Or use a jumper wire to ground the light to the body. Determine which part(s) is/are responsible for the problem.

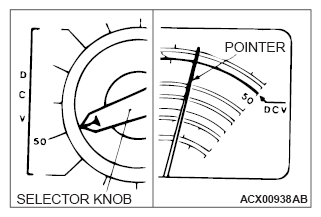

   Fig 3: Identifying Instrument Pointer And Selector Knob

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Checking with instruments

Use an appropriate instrument in an adequate range and read the indication correctly.
