Can-Related Connector Position
WARNING: This page is about a different variant/trim than selected.

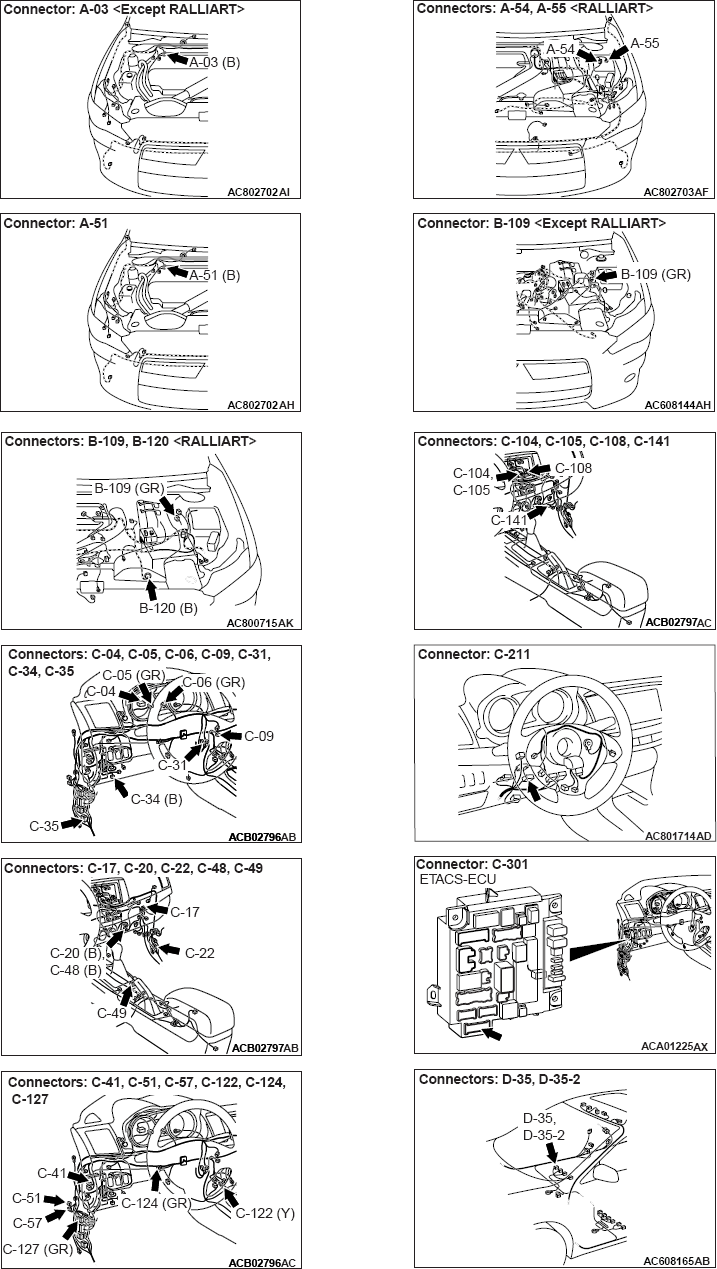

CONNECTOR POSITIONS
| Connector No. | Connector name |
|---|---|
| A-03 | ABS-ECU < Vehicles without ASC > |
| A-51 | ASC-ECU < Vehicles with ASC > |
| A-54 | Intermediate connector (Front wiring harness and control wiring harness combination) < RALLIART > |
| A-55 | Joint connector (CAN4) < RALLIART > |
| B-109 | Engine control module (ECM) |
| B-120 | Transaxle assembly < RALLIART > |
| C-04 | Combination meter |
| C-05 | Joint connector (CAN2) |
| C-06 | Joint connector (CAN1) |
| C-09 | Wireless control module (WCM) < Vehicles with WCM > |
| C-17 | Satellite radio tuner < vehicles with satellite radio > |
| C-20 | A/C-ECU < Vehicles with A/C > |
| C-22 | Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-31 | KOS-ECU < Vehicles with KOS > |
| C-34 | Data link connector |
| C-35 | Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-41 | Transaxle control module (TCM) < CVT > |
| C-48 | Heater control unit < Vehicles without A/C > |
| C-49 | Shift lever < RALLIART > |
| C-51 | AWC-ECU < RALLIART > |
| C-57 | AWD-ECU < Electric controlled AWD > |
| C-104 | Radio and CD player < Vehicles without MMCS > |
| C-105 | Intermediate connector (Instrument panel wiring harness and navigation wiring harness combination) |
| C-108 | CAN box unit < Vehicles with MMCS > |
| C-122 | SRS-ECU |
| C-124 | Joint connector (CAN3) |
| C-127 | Intermediate connector (Instrument panel wiring harness and front wiring harness combination) |
| C-141 | Electric power steering-ECU < Vehicles with electric power steering > |
| C-211 | Steering wheel sensor |
| C-301 | ETACS-ECU |
| D-35 | Front seat assembly (RH) |
| D-35-2 | Occupant classification-ECU |
