Section 19 (Active Stability Control System (ASC) - Lancer)
>>
General Information
>>
ASC Electrical Diagram
>>
RALLIART
ASC Electrical Diagram: RALLIART
WARNING:
This page is about a different variant/trim than selected.

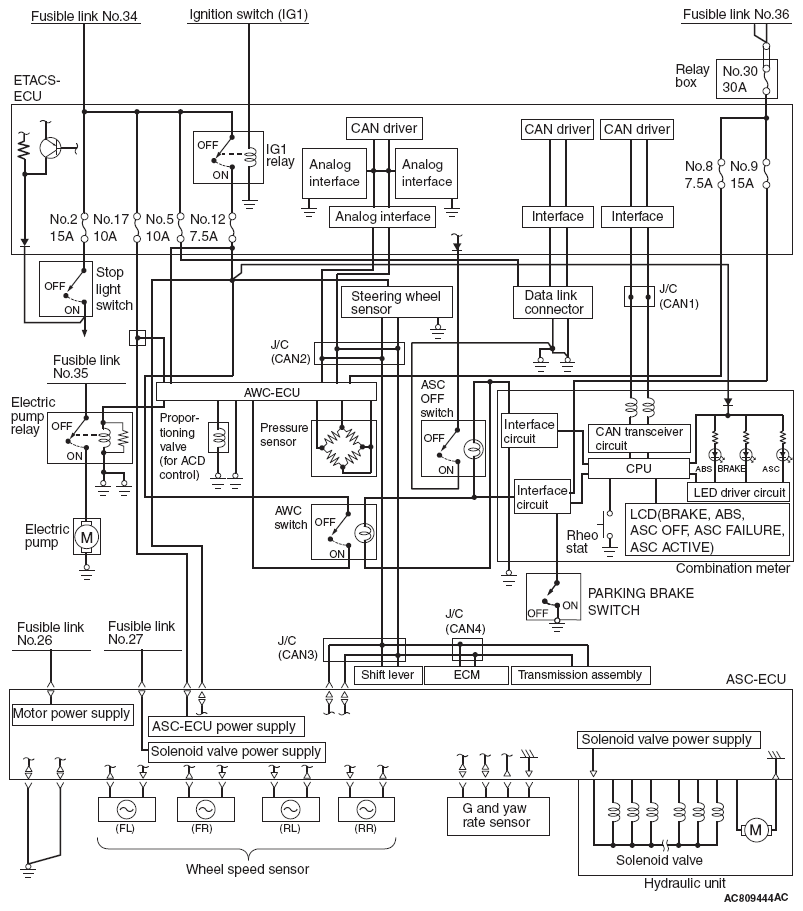

Fig 1: ASC Electrical Diagram (Ralliart)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
