Lubrication Points

WARNING: This page is about a different variant/trim than selected.

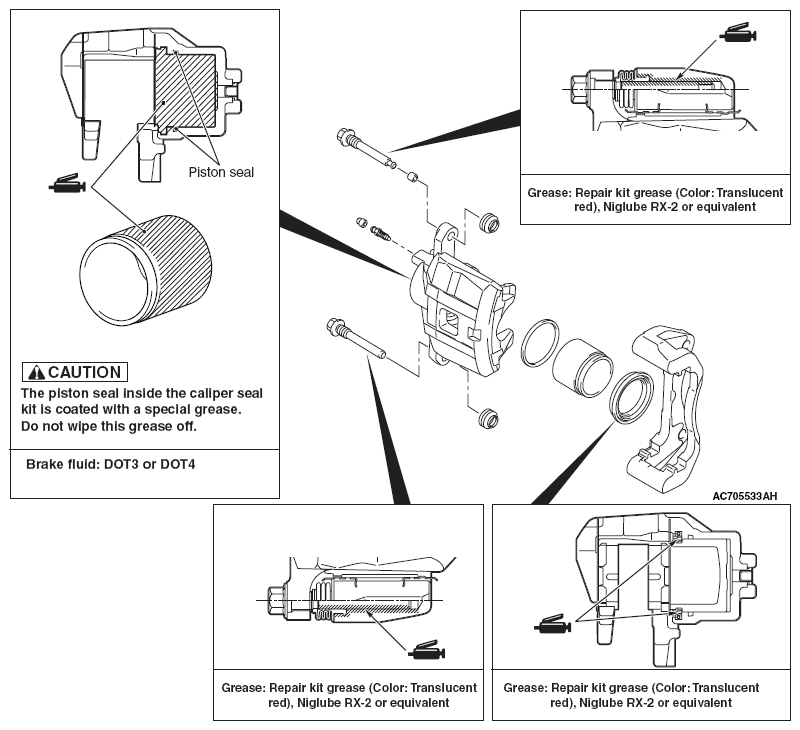

Fig 1: Identifying Grease Applying Areas Of Front Disc Brake Assembly
G06672897Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
