Clip And Claw Positions: Notes

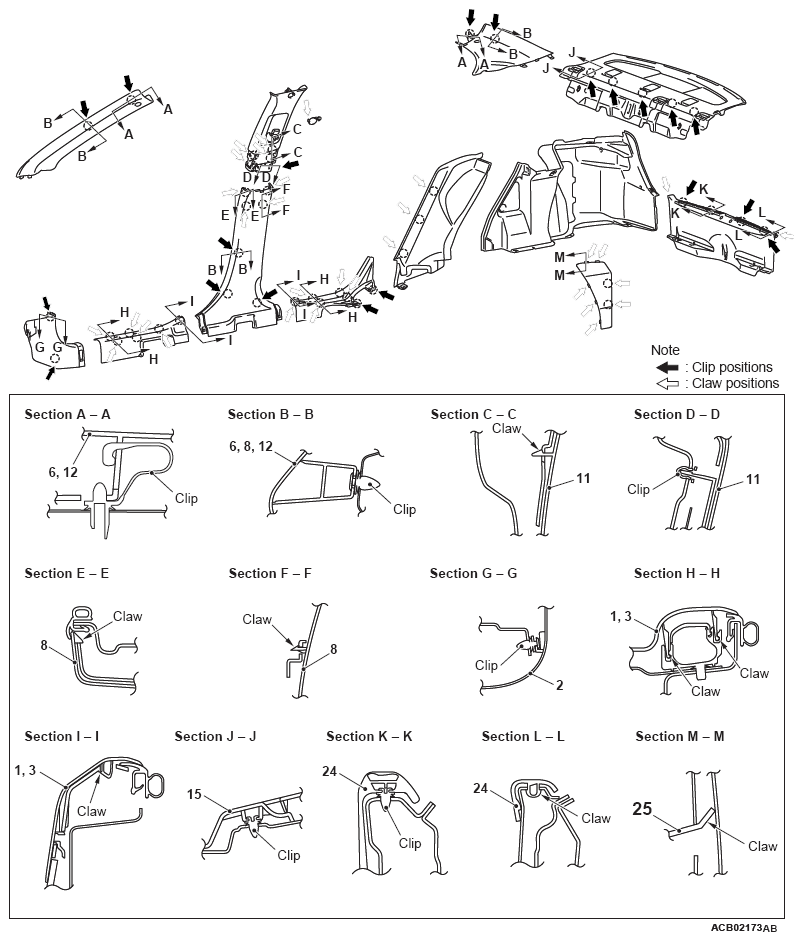

Fig 1: Identifying Clip And Claw Positions (Lancer)

G08295016

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Each number in the illustration indicates a part number.
