Lancer ES, 4D Hatchback
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Lancer
>>
Instrument Center Panel
>>
Removal And Installation
Removal And Installation

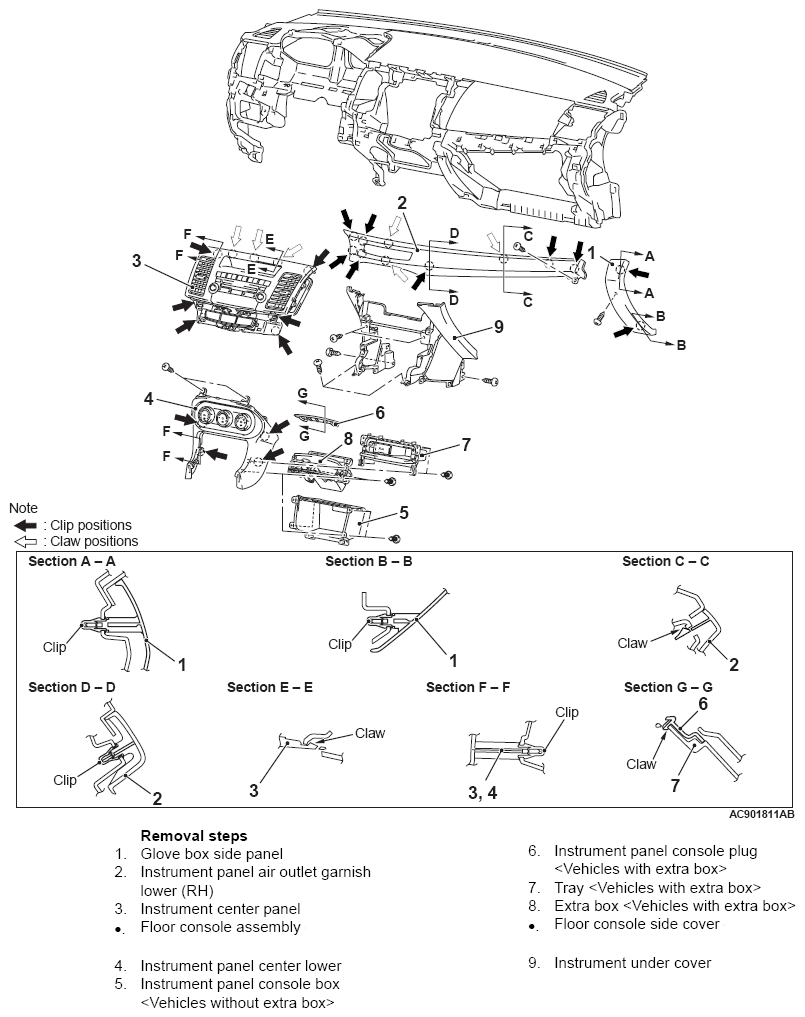

Fig 1: Instrument Center Panel Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
