Nominal Resistance Of The Fuel Level Sensor

  1. Remove the fuel pump module (Refer to FUEL TANK < 2.0 L engine, 2.4 L engine > or FUEL TANK < 2.0L ENGINE TURBO > < RALLIART >).

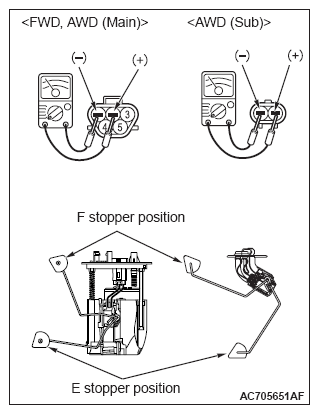

    Fig 1: Checking Fuel Level Sensor
    G08295845Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
    FUEL LEVEL SENSOR RESISTANCE STANDARD VALUE (FWD)

    Float position Gauge resistance value (ohms)
    Stopper position "F" 13.0 ± 1.0
    Stopper position "E" 120.0 ± 1.0
    FUEL LEVEL SENSOR RESISTANCE STANDARD VALUE (AWD)

    Float position Gauge resistance value (ohms)
    Main Sub
    Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0
    Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0
  3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
