Removal And Installation: Notes

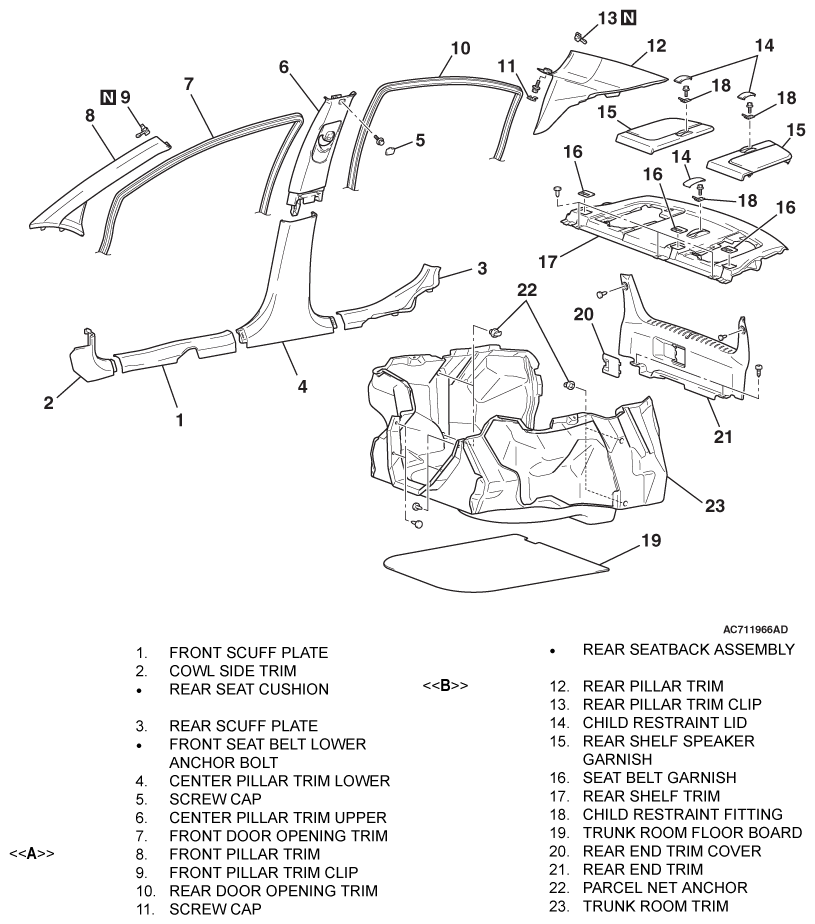

Fig 1: Exploded View Of Trims

G06710678

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
