Home >> Mitsubishi >> 2012 >> Galant FE >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior Trim >> Instrument Panel Assembly >> Disassembly And Assembly

Disassembly And Assembly

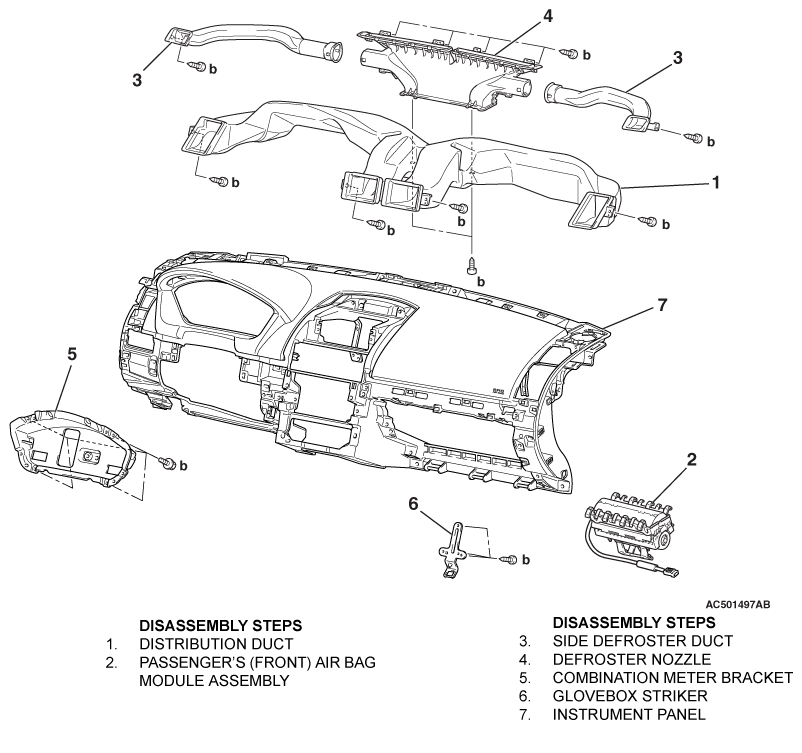

Fig 1: Disassembling View Of Instrument Panel Assembly

G06710676

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
