Home >> Mitsubishi >> 2012 >> Galant FE >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior Trim >> Front Seat Assembly >> Disassembly And Assembly >> Overview

Disassembly And Assembly: Overview

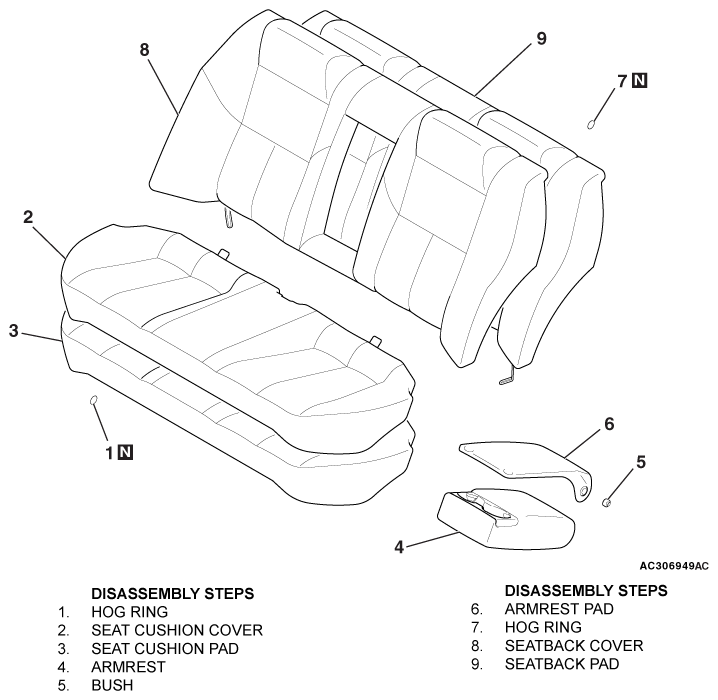

Fig 1: Rear Seat Assembly Components

G06710708

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
