Mitsubishi
>>
2012
>>
Galant FE
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control System
>>
Vacuum Hoses
>>
Vacuum Hose Routing
>>
2.4L Engine
2.4L Engine

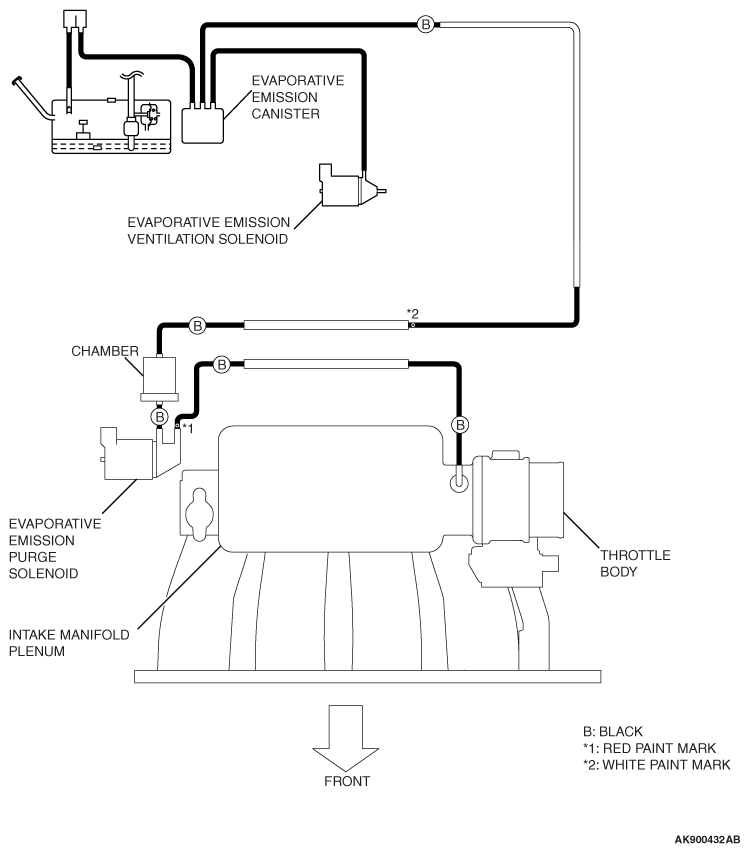

Fig 1: Vacuum Hose Routing (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
