Vacuum Circuit Diagram
>>
2.4L Engine
2.4L Engine

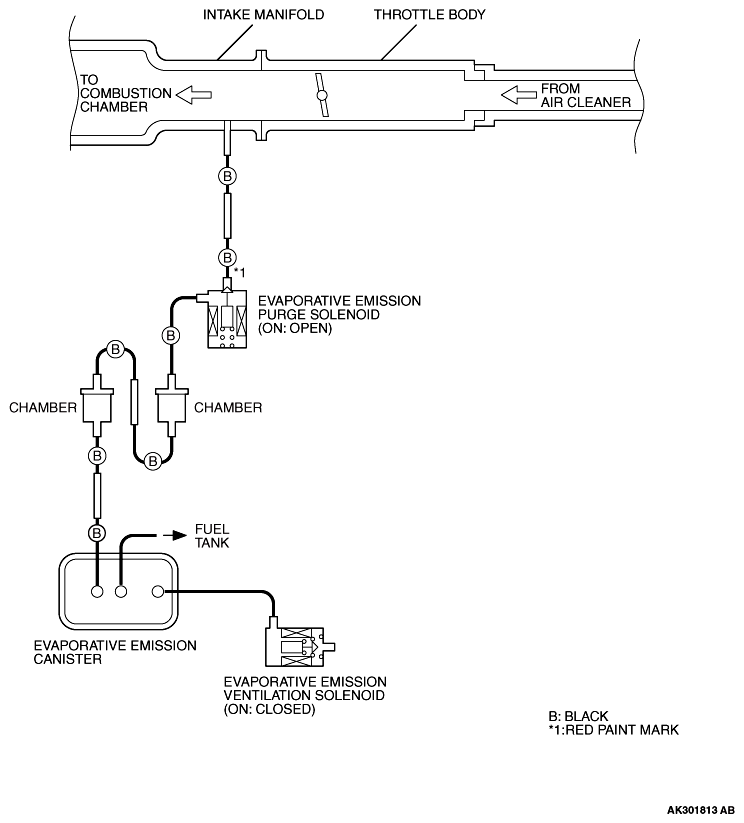

Fig 1: Vacuum Circuit Diagram - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
