INSPECTION PROCEDURE A-1: Communication With The SWS Monitor Kit Is Not Possible: Notes

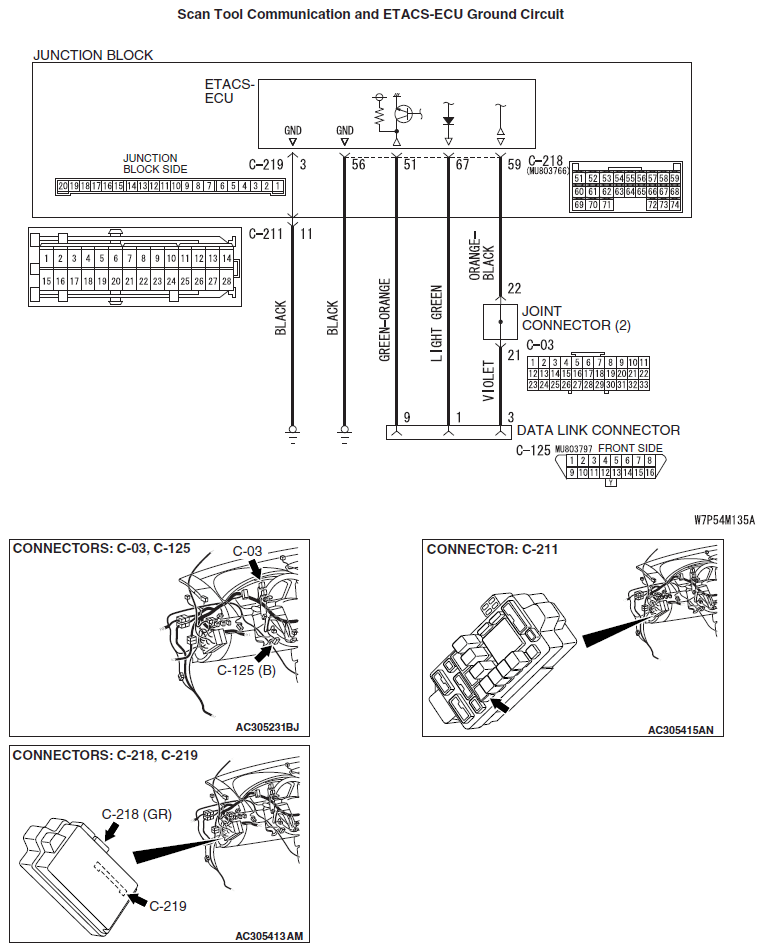

Fig 1: Scan Tool Communication & ETACS-ECU Ground Circuit

G06711674

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
