Adjustment By Operating The Multi-Center Display - MITSUBISHI Multi Communication System

The following function and system customization are possible by using the multi-center display.

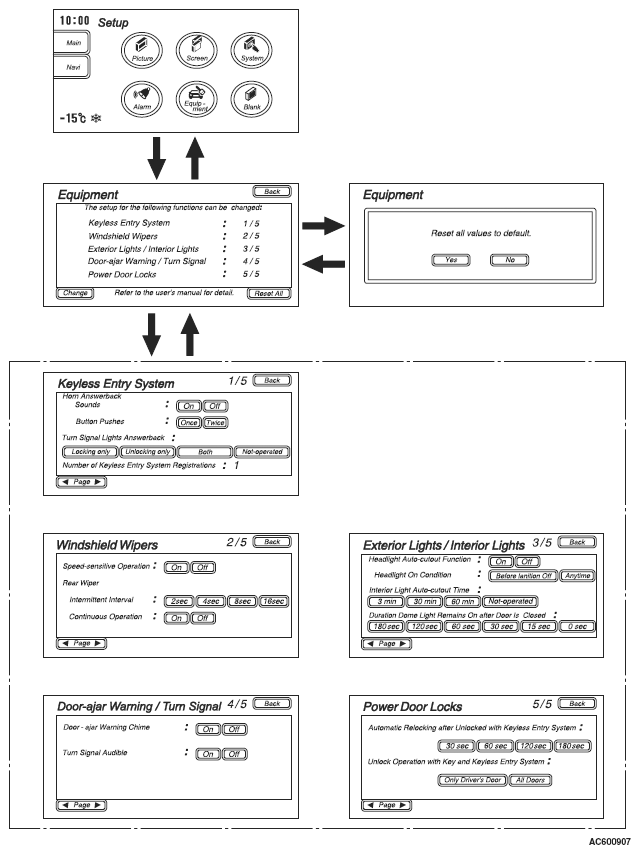

Fig 1: Customization Function Adjustment Flow Chart
G05481337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CUSTOMIZATION FUNCTION ADJUSTMENT REFERENCE CHART

ITEM (multi-center display) ADJUSTMENT DETAILS
Keyless entry system Horn Answerback Sounds The horn answerback can be enabled or disabled.
  1. ON (default)
  2. OFF
Button Pushes The number of keyless entry button operation can be set when a horn answerback sounds.
  1. Once
  2. Twice (default)
Turn Signal Lights Answerback The hazard answerback flashing conditions can be set in the following ways.
  1. Locking only
  2. Unlocking only
  3. Both (default)
  4. Not-operated
Windshield Wipers Speed-sensitive Operation The speed-sensitive wiper function can be activated or deactivated.
  1. ON (default)
  2. OFF
Rear Wiper(1) Intermittent Interval -
  1. 2 sec
  2. 4 sec
  3. 8 sec
  4. 16 sec
Continuous Operation -
  1. ON
  2. OFF
Exterior Lights / Interior Lights Headlight Auto-cutout Function -
  1. ON (default)
  2. OFF
Headlight On Condition -
  1. Before Ignition Off (default)
  2. Anytime
Interior Light Auto-cutout Time The period before the interior illumination is turned off automatically can be set in the following ways.
  1. 3 minutes
  2. 30 minutes (default)
  3. 60 minutes
  4. No auto-cutout
Duration Dome Light Remains On after Door is Closed -
  1. 180 sec
  2. 120 sec
  3. 60 sec
  4. 30 sec (default)
  5. 15 sec
  6. 0 sec
Door-ajar Warning / Turn Signal Door - ajar Warning Chime -
  1. ON (default)
  2. OFF
Turn Signal Audible -
  1. ON
  2. OFF (default)
Power Door Locks Automatic Re-locking after Unlocked with Keyless Entry System -
  1. 30 sec (default)
  2. 60 sec
  3. 120 sec
  4. 180 sec
Unlock Operation with Key and Keyless Entry System -
  1. Only Driver's Door (default)
  2. All Doors
Reset All Initialization of above mentioned functions
(1) The item of the rear wiper is shown on the display, but the rear wiper can not be customized because it is not equipped on GALANT.
