INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply Circuit System
>>
Notes
INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply Circuit System: Notes

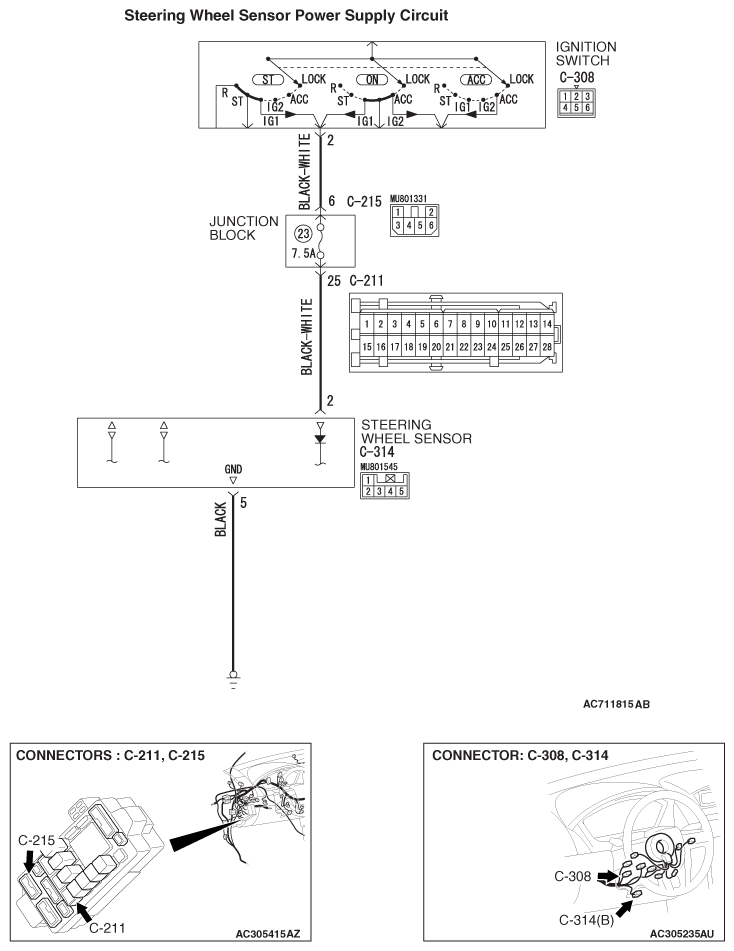

Fig 1: Steering Wheel Sensor Power Supply Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
