LH Side

WARNING: Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.

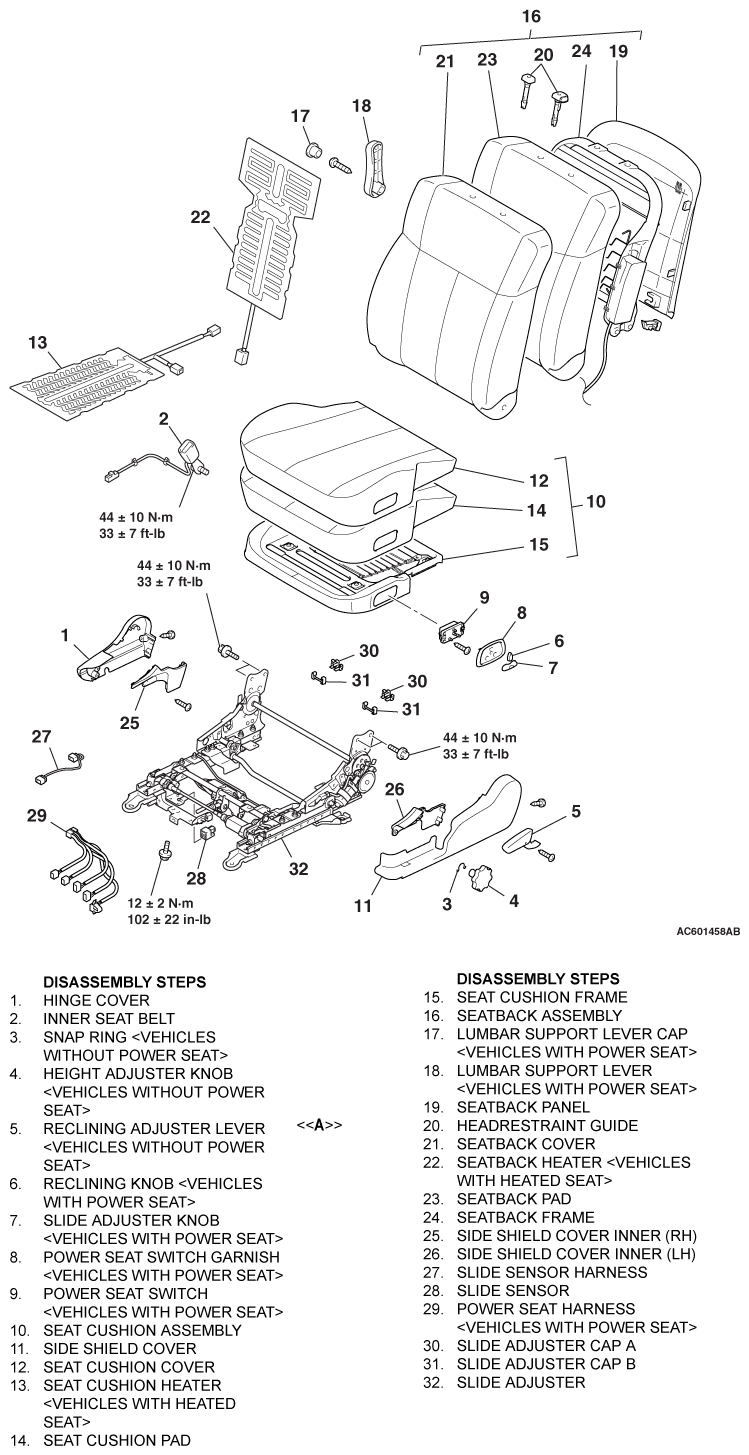

Fig 1: Exploded View Of Front Seat Assembly With Torque Specifications - LH Side
G06710701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
