Disassembly And Assembly: Notes

WARNING: Do not move the tilt lever from the lock position until the installation is completed. If you move it accidentally, the steering column cannot be reinstalled correctly.

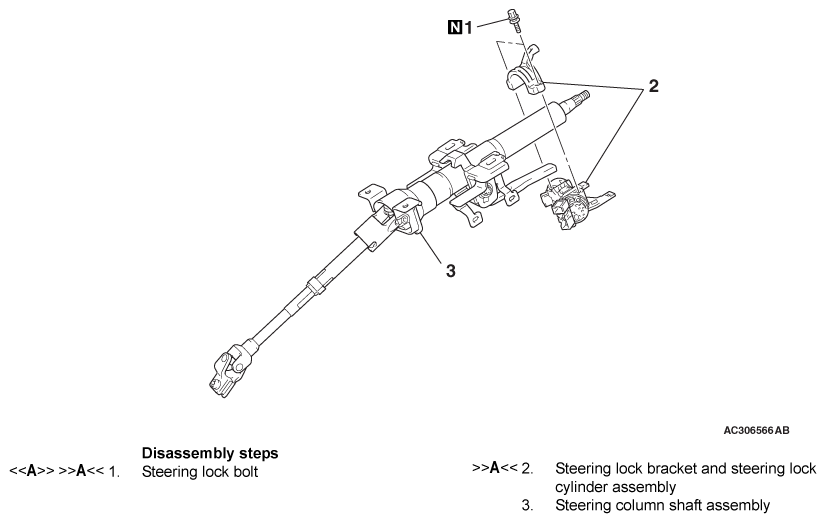

Fig 1: Disassembly/Assembly Of Steering Column Shaft Assembly
G06715914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
