Removal And Installation - 2.4L Engine: Notes

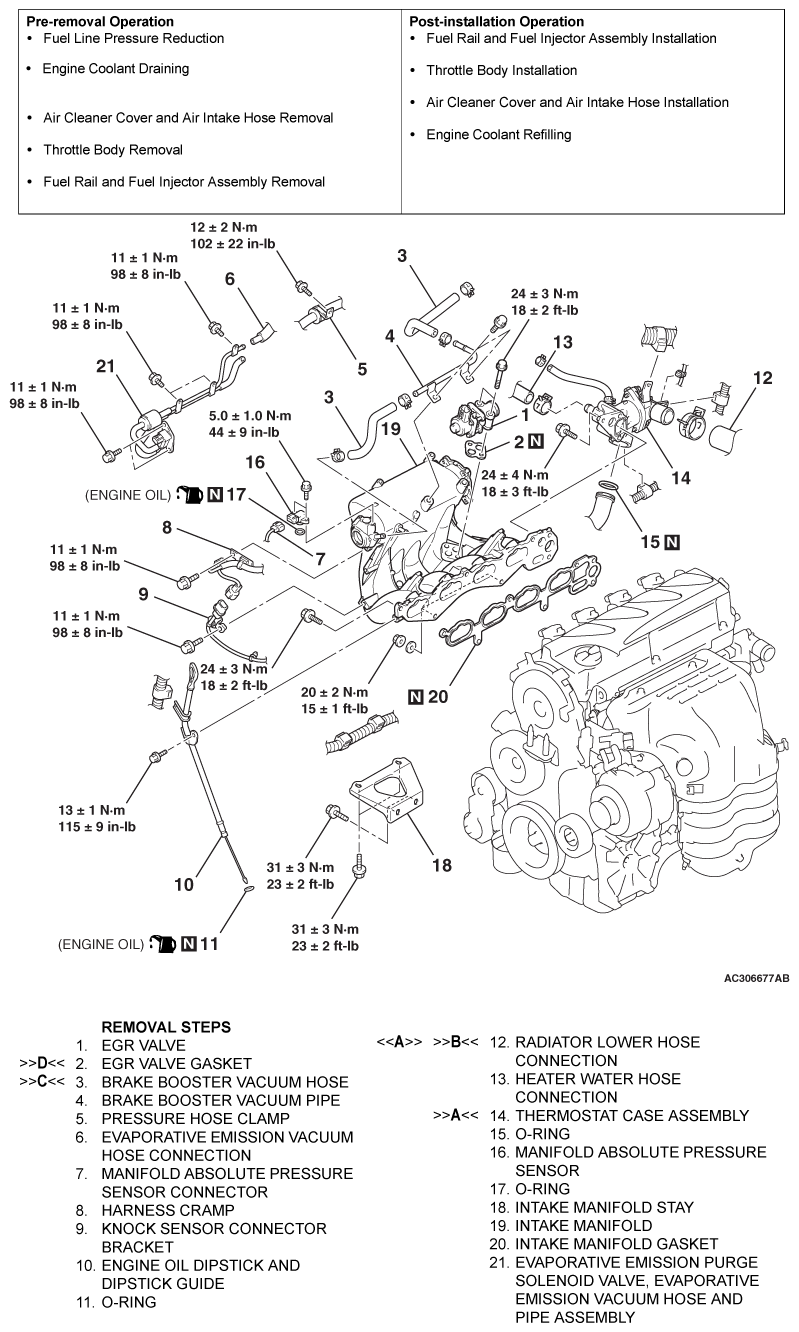

Fig 1: Removal/Installation Of Intake Manifold (2.4L Engine) With Torque Specifications
G06717527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
