INSPECTION PROCEDURE 3: TCL/ASC-ECU Power Supply Circuit System: Notes

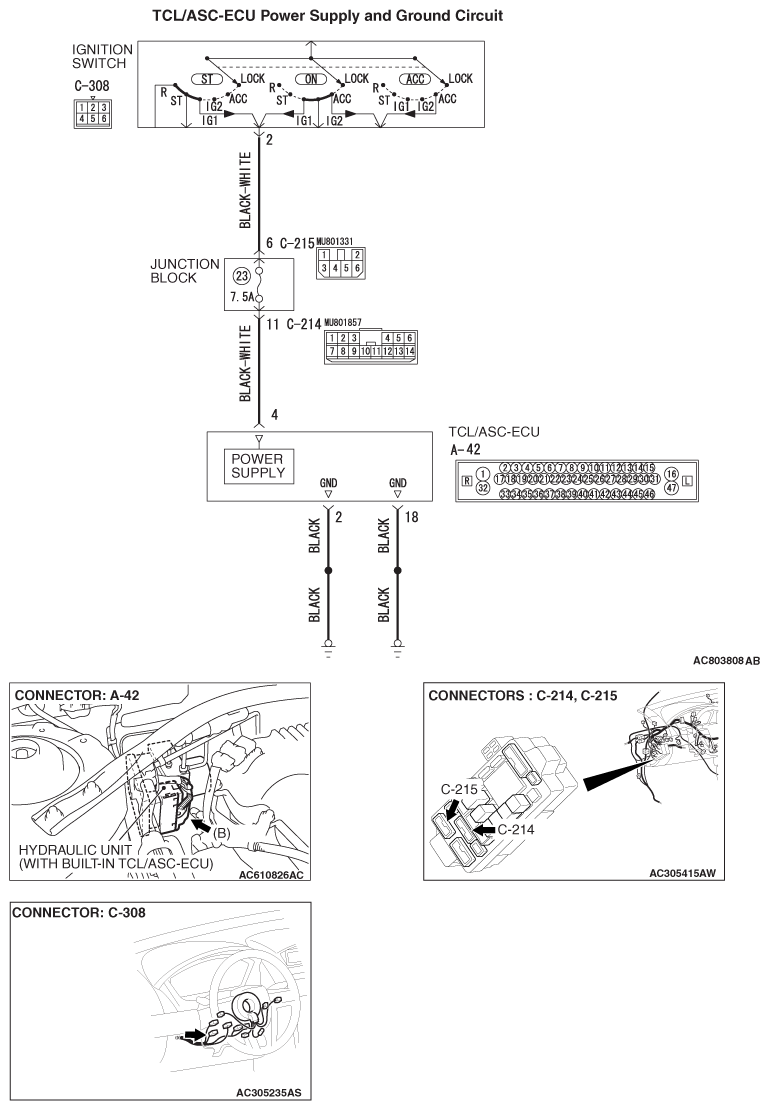

Fig 1: TCL/ASC-ECU Power Supply & Ground Circuit

G06710544

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
