INSPECTION PROCEDURE 2: Communication Between Scan Tool And The Steering Wheel Sensor Is Not Possible.: Notes

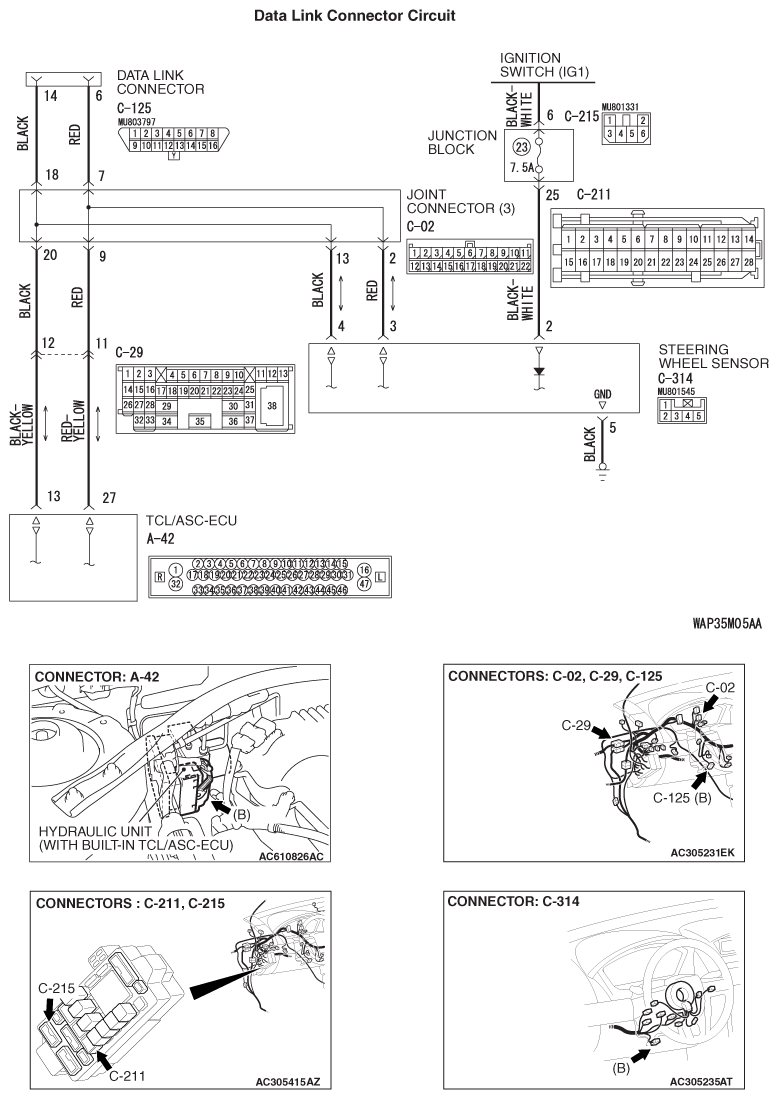

Fig 1: Data Link Connector Circuit

G06710582

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
