INSPECTION PROCEDURE 1: Communication Between Scan Tool And The TCL/ASC-ECU Is Not Possible.: Notes

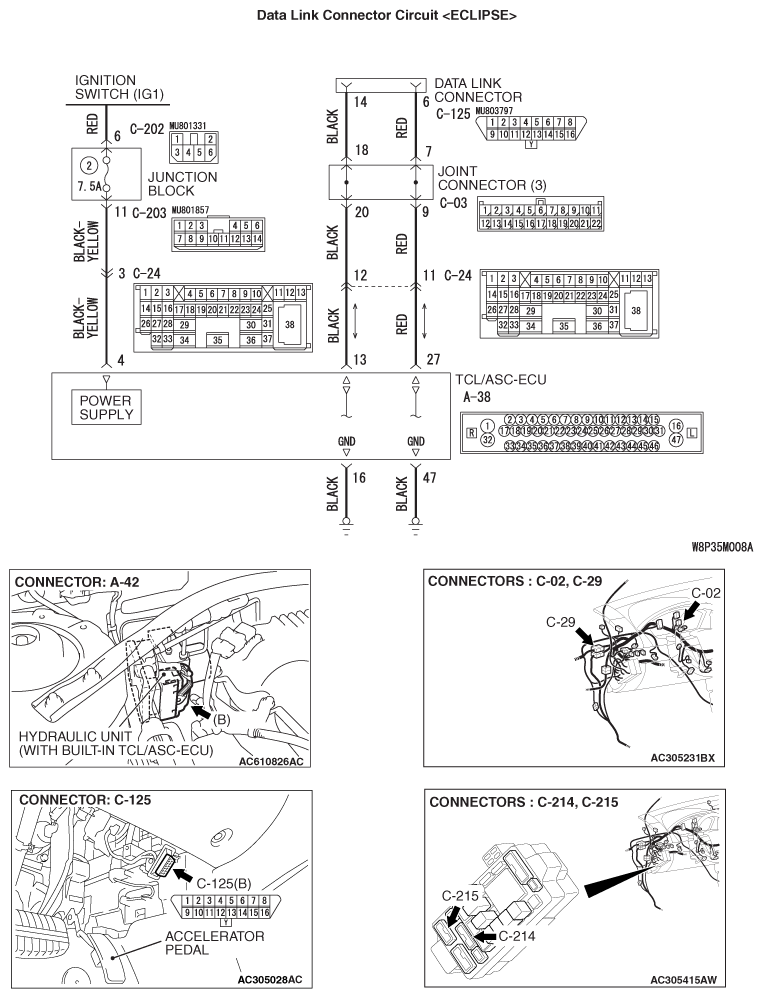

Fig 1: Data Link Connector Circuit (Eclipse)

G06710580

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
