Removal And Installation: Notes

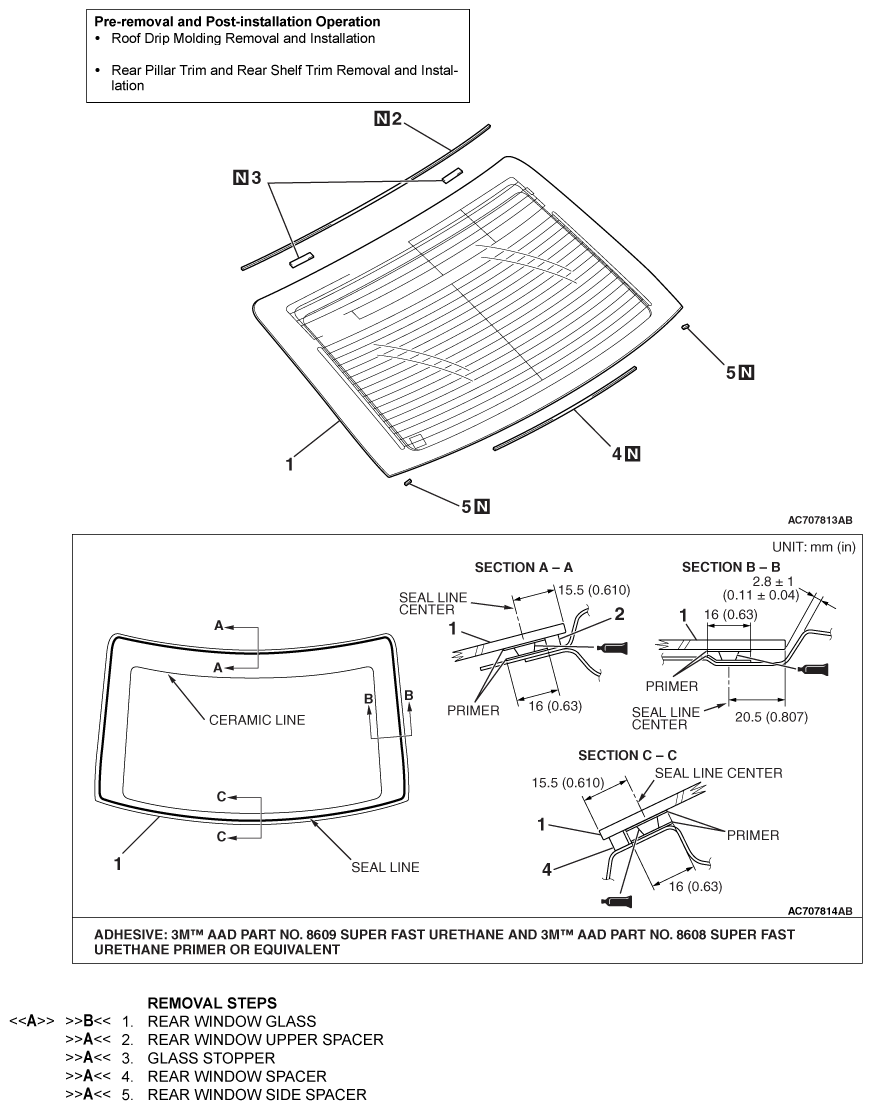

Fig 1: Rear Window Glass Components
G06717861Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
