>>B<< Lock Pin Installation

Install the lock pin so that it will be oriented in the direction shown in the illustration.

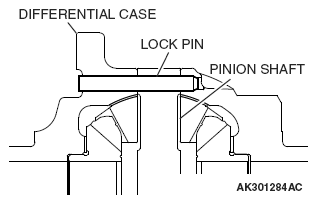

Fig 1: Installing Lock Pin

G06245687

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
