Hub Bolt Replacement

Required Special Tools:

• MB990767: Front Hub and Flange Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the caliper assembly and brake disc, and retain the caliper assembly with a wire and the like to prevent from falling (Refer to FRONT AXLE HUB ASSEMBLY  ).

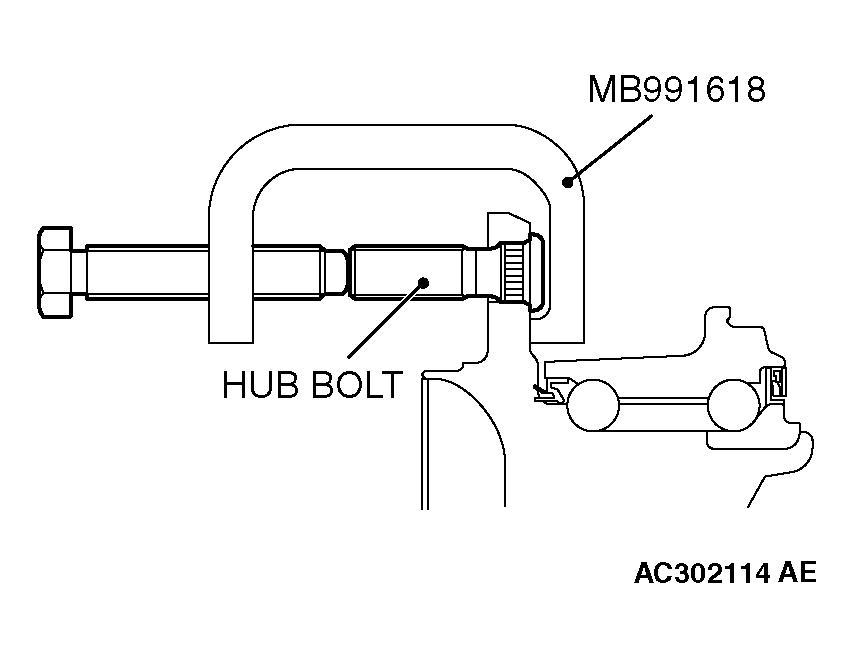

2. Use special tool MB991618 to remove the hub bolts.
   Fig 1: Removing Hub Bolts Using Special Tools

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

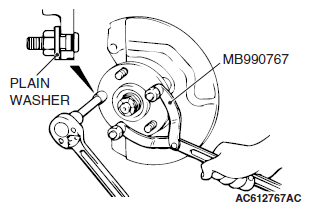

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the brake disc, caliper assembly and tighten the caliper assembly mounting bolts to the specified torque (Refer to FRONT AXLE HUB ASSEMBLY  ).
   Fig 2: Tightening Caliper Assembly Mounting Bolts

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
