Special Tools

SPECIAL TOOLS REFERENCE

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990900 or MB991164 Door adjusting wrench	MB990900-01	Adjustment of door fit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990925 Bearing and oil seal installer set MB990939 Remover bar	MB990925-01 or General service tool	Adjustment of door striker
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990211 Slider hammer	MB990211-01
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990241 Axle shaft puller MB990243 Body puller	MB990241-01 or General service tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 Harness set MB991219 Test harness MB991220 LED harness MB991221 LED harness adapter MB991222 Probe	General service tools	Making voltage and resistance measurement during troubleshooting Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	General service tool	Making voltage and resistance measurement during troubleshooting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992050 Delta glass adjust block set MB992051 Delta glass adjust block a MB992052 Delta glass adjust block b	-	Adjustment of delta window glass

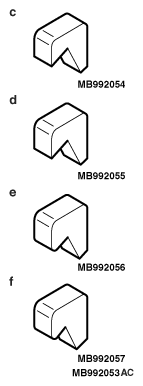

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992053 Door glass adjust block set c: MB992054 Door glass adjust block c d: MB992055 Door glass adjust block d e: MB992056 Door glass adjust block e f: MB992057 Door glass adjust block f	-	Adjustment of front door window glass <ECLIPSE>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992164 Glass adjust block set g: MB992165 Glass adjust block g h: MB992166 Glass adjust block h i: MB992167 Glass adjust block i j: MB992168 Glass adjust block j k: MB992169 Glass adjust block k l: MB992170 Glass adjust block l	-	Adjustment of front door window glass and quarter window glass <ECLIPSE SPYDER>
