Clip And Claw Positions: Notes

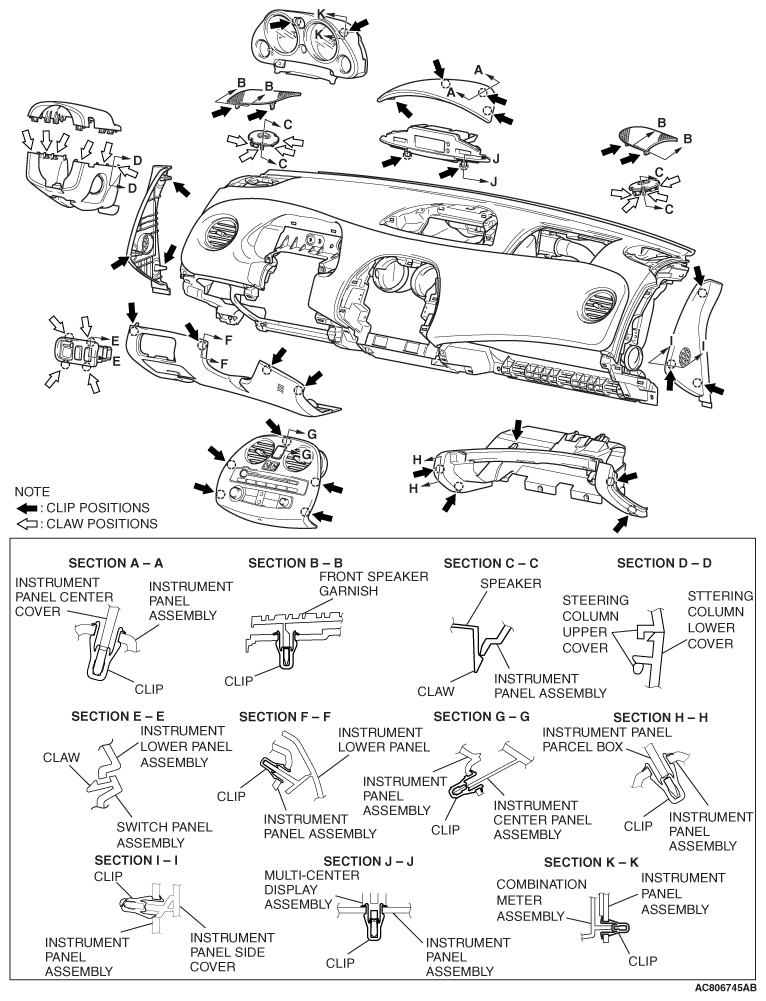

Fig 1: Locating Clip And Claw Positions

G06686726

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
