Removal And Installation: Notes

CAUTION:
  • When removing and installing the inner seat belt, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)
  • SRS: Before removing and installing the seat belts with pre-tensioner, refer to SEAT BELT WITH PRE-TENSIONER .

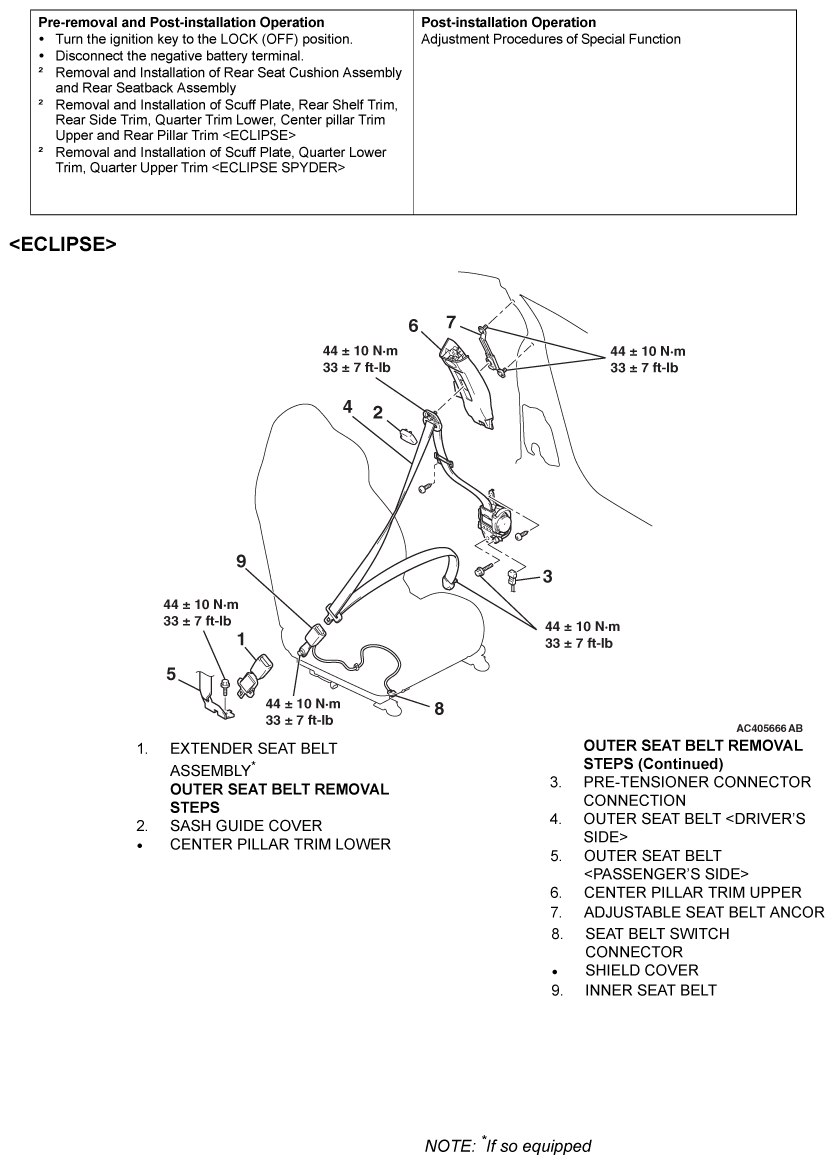

Fig 1: Removal/Installation Of Front Seat Belt Components With Torque Specification (Eclipse)
G06686772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
