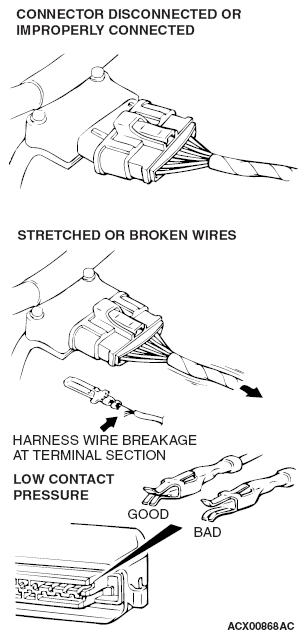

Visual Inspection
- Connector is disconnected or improperly connected
- Connector pins are pulled out
- Stretched and broken wires at terminal section
- Low contact pressure between male and female terminals
- Low connection pressure due to rusted terminals or foreign matter lodged in terminals
