Special Tools

SPECIAL TOOLS DESCRIPTION CHART

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) A: Vehicle communication interface (V.C.I.) B: M.U.T.-III USB cable C: M.U.T.-III main harness A (Vehicles with CAN communication system) D: M.U.T.-III main harness B (Vehicles without CAN communication system) E: M.U.T.-III main harness C (for Chrysler models only) F: M.U.T.-III measurement adapter G: M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. SWS communication line check (ECU check and service data)

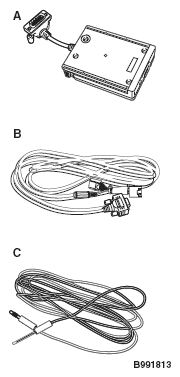

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991813 MB991806 MB991812 MB991822 SWS monitor kit A: SWS monitor cartridge B: SWS monitor harness (for column-ECU) C: Probe harness	-	SWS communication line check (ECU check and service data)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991529 Diagnostic trouble code check harness	Tool not necessary if the scan tool (M.U.T.-III) is available	Checking input signal when using a voltmeter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set A: Test harness B: LED harness C: LED harness adaptor D: Probe	General service tools	Making voltage and resistance measurement during troubleshooting A: Connector pin contact pressure inspection B: Power circuit inspection C: Power circuit inspection D: Commercial tester connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	General service tool	Making voltage and resistance measurement during troubleshooting
