INSPECTION PROCEDURE 9: When the ASC OFF Switch is Push On, ASC does not be Cancelled: Notes

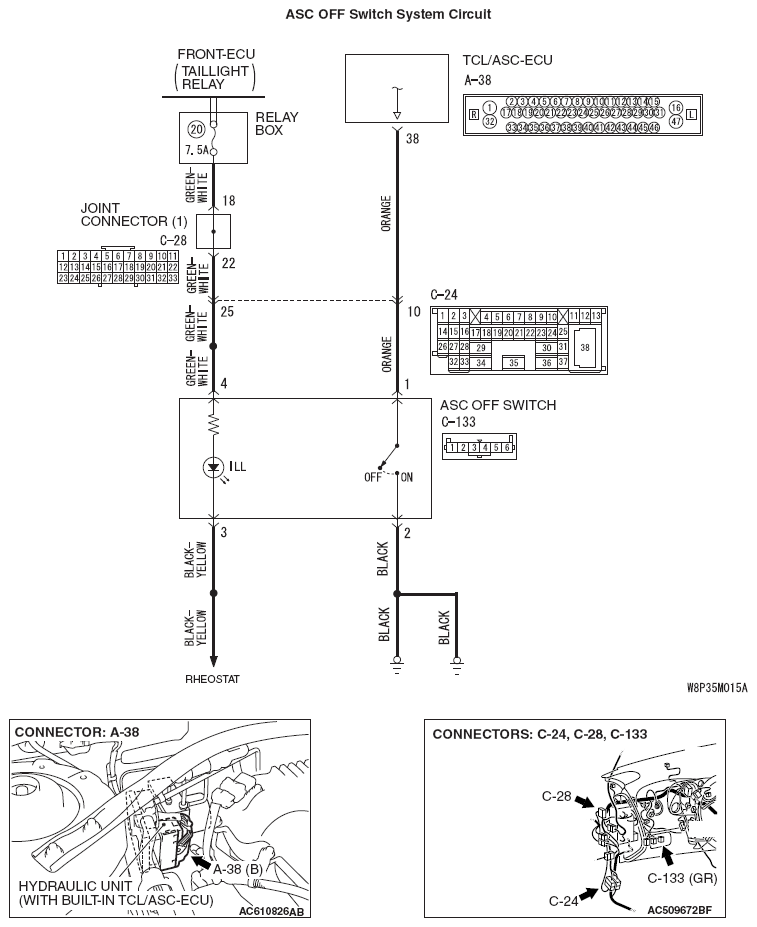

Fig 1: ASC OFF Switch System Circuit Diagram

G06689890

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
