INSPECTION PROCEDURE 3: TCL/ASC-ECU power supply circuit system: Notes

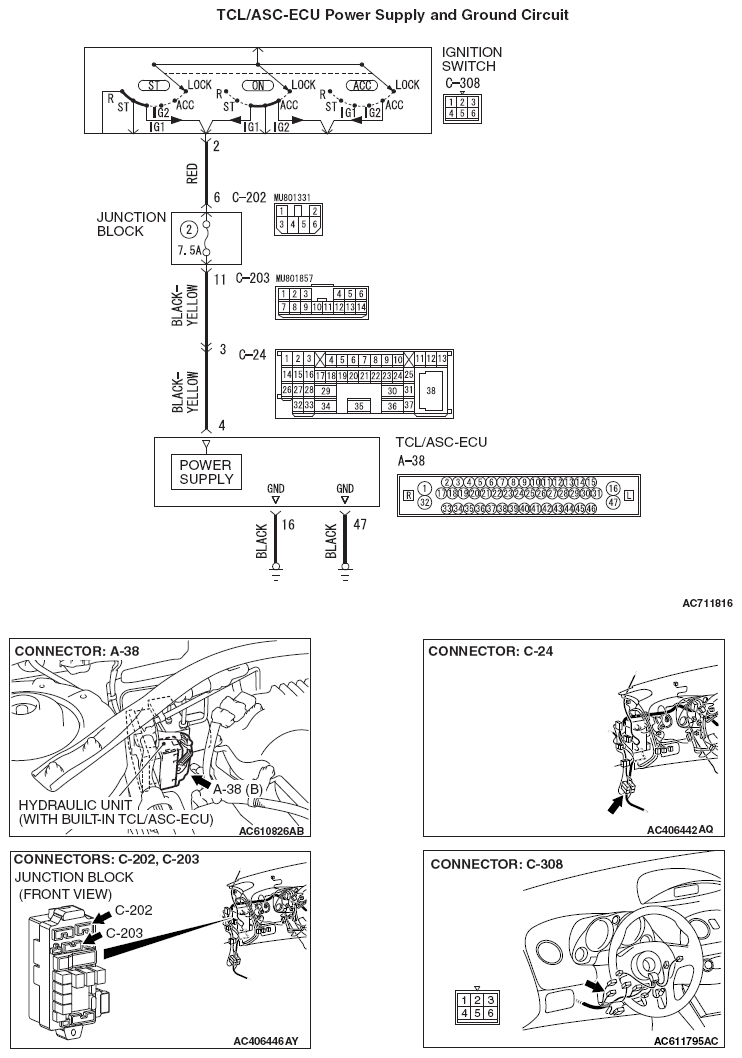

Fig 1: TCL/ASC-ECU Power Supply And Ground Circuit Diagram

G06689869

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
