Basic Disc Brake System
>>
Disc Brake Assembly
>>
Removal And Installation
Removal And Installation

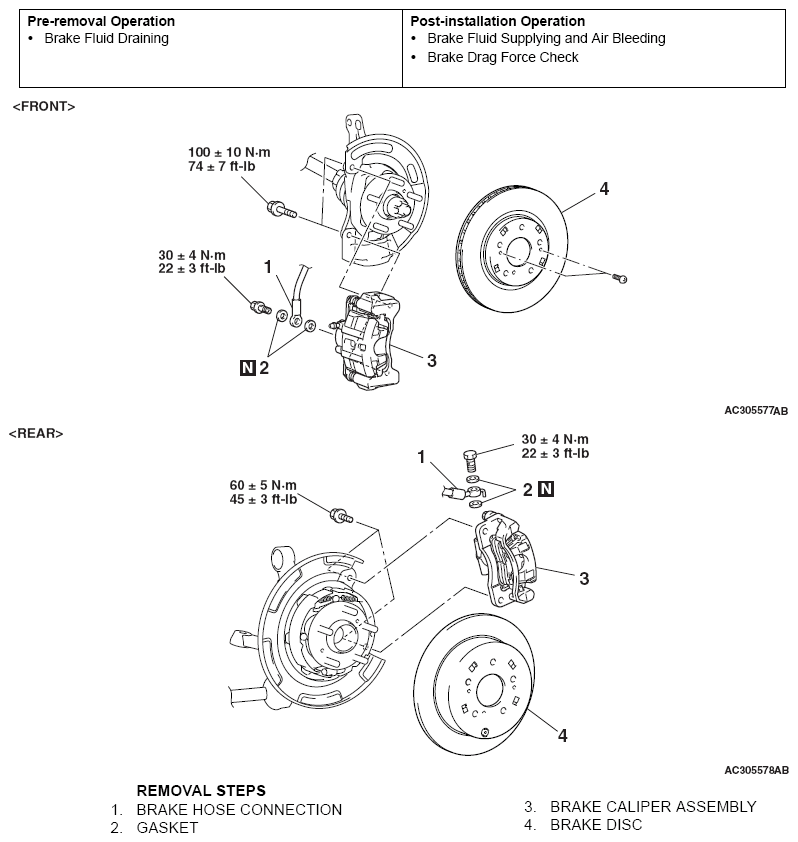

Fig 1: Exploded View Of Disc Brake Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
