Stoplight Switch Check

  1. Connect an ohmmeter between the stoplight switch connector terminals.
  2. There should be no continuity between the terminals when the plunger is pushed in as shown in illustration. There should be continuity when it is released.
    CONTINUITY SPECIFICATION

    TESTER CONNECTION PLUNGER SPECIFIED CONDITION
    1 - 2 IN Open circuit
    OUT Less than 2Ω

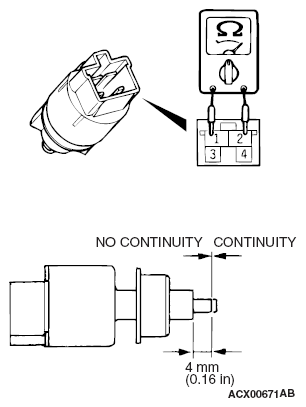

    Fig 1: Checking Stoplight Switch Connector Terminals
    G06689625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
