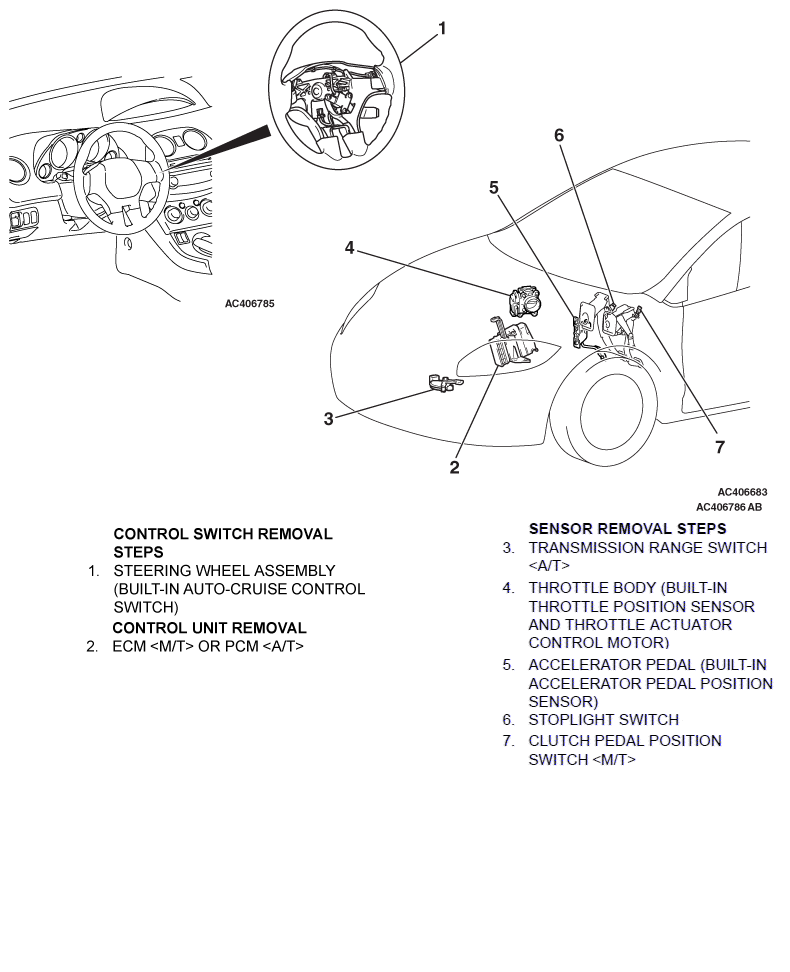

Removal And Installation
WARNING:
Before removal of the air bag module, refer to
SRS SERVICE PRECAUTIONS
and
AIR BAG MODULE AND CLOCK SPRING
.
CAUTION:
- Do not replace the ECM <M/T> or PCM <A/T> and the ETACS-ECU simultaneously. Always replace either one of the ECUs first, and register the encrypted code (Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE ). Then, replace the other ECU.
- After the ECM <M/T> or PCM <A/T> is replaced, idling speed may be unstable because the MFI engine learning is not completed. To make it stable, make the system learn the idling (Refer to LEARNING PROCEDURE FOR IDLING IN MFI ENGINE ).
