Disassembly And Assembly: Notes

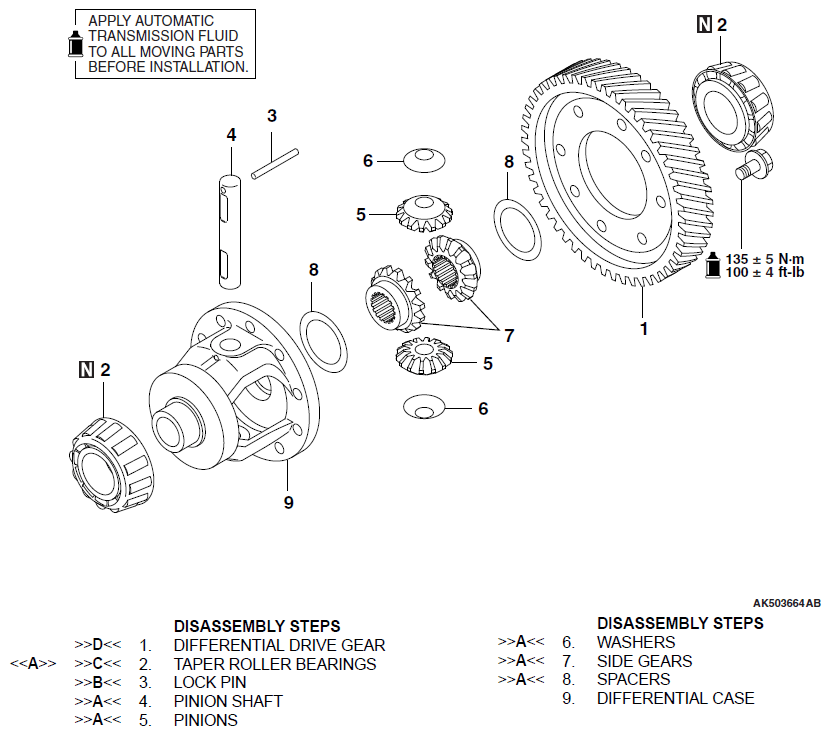

Fig 1: Disassembly/Assembly Of Differential Components With Torque Specifications
G06685814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
