Disassembly And Assembly: Notes

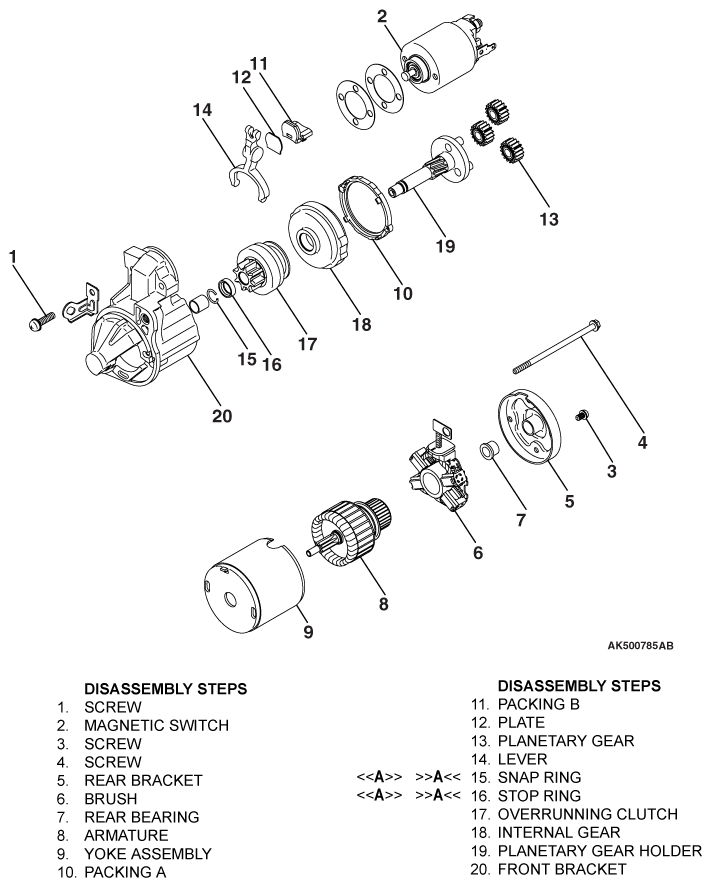

Fig 1: Disassembling And Assembling Starter Assembly

G06692000

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
