Removal And Installation <3.8L Engine>: Notes

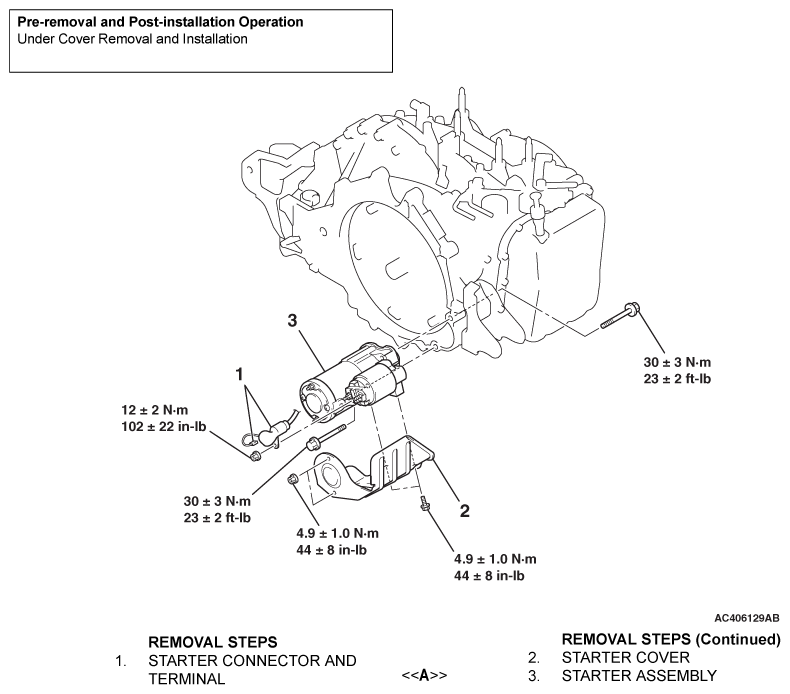

Fig 1: Removing/Installing Starter Motor Assembly With Torque Specifications (3.8L Engine) - A/T

G06691987

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
