Eclipse GS, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Transaxle Overhaul
>>
Control Housing
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

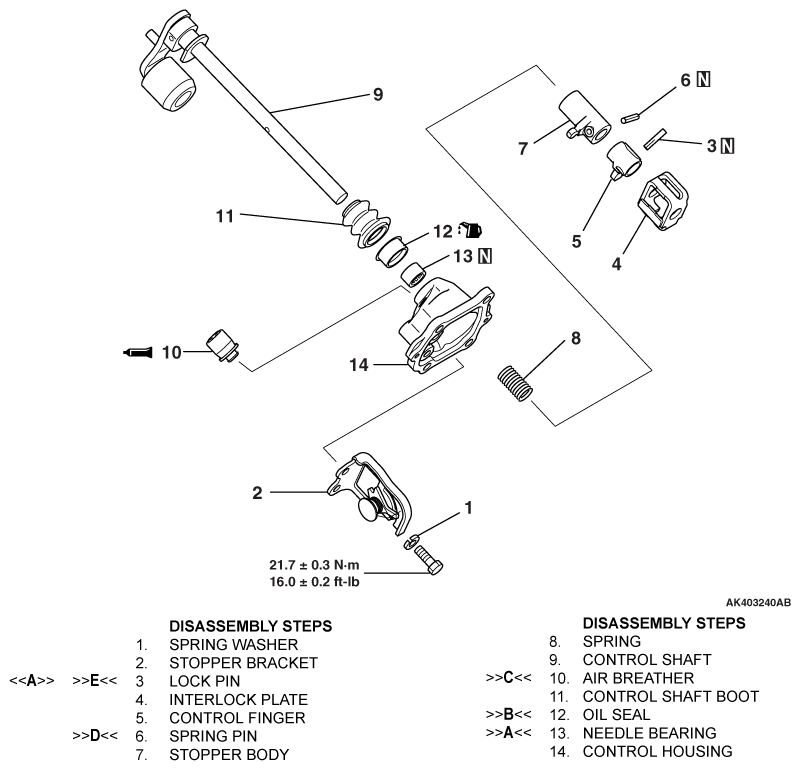

Fig 1: Disassembly/Assembly Of Control Housing Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
