Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

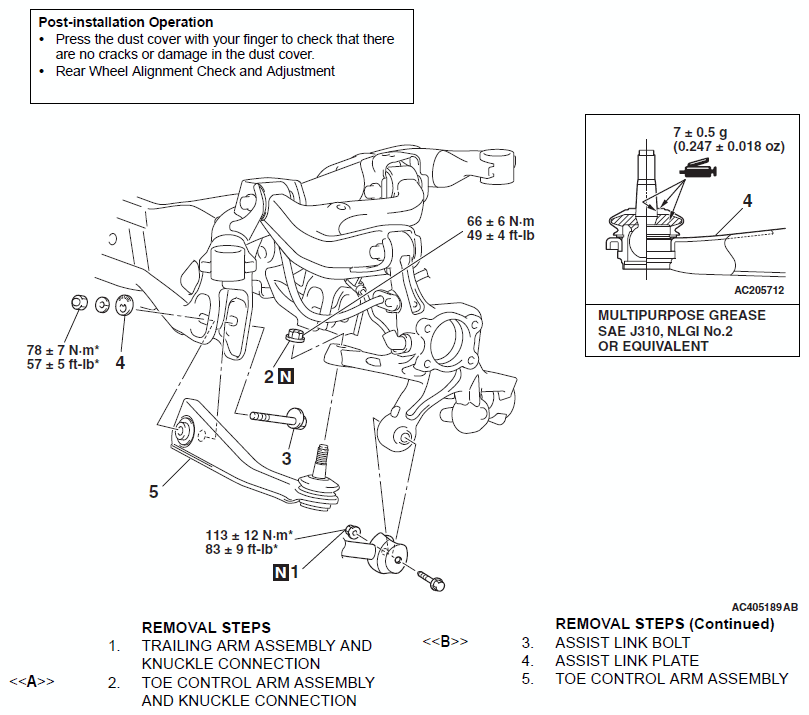

Fig 1: Toe Control Arm Components With Torque Specifications
G06692269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
