Disassembly And Assembly: Notes

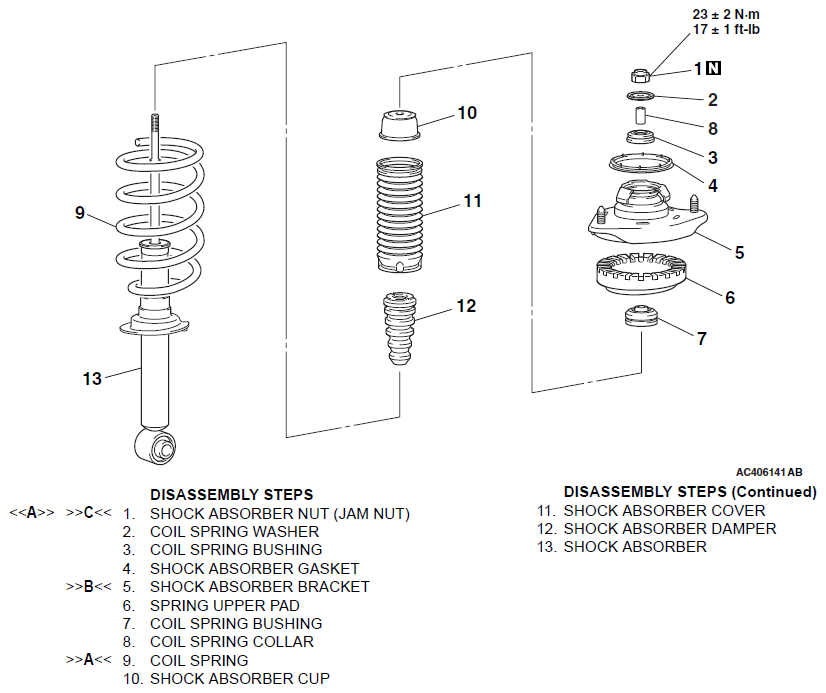

Fig 1: Exploded View Of Shock Absorber Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991237: Spring Compressor Body
• MB991239: Arm Set
• MB991680: Wrench Set
  • MB991681: Wrench
