Section 2 (Convertible Top)
>>
Convertible Top Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

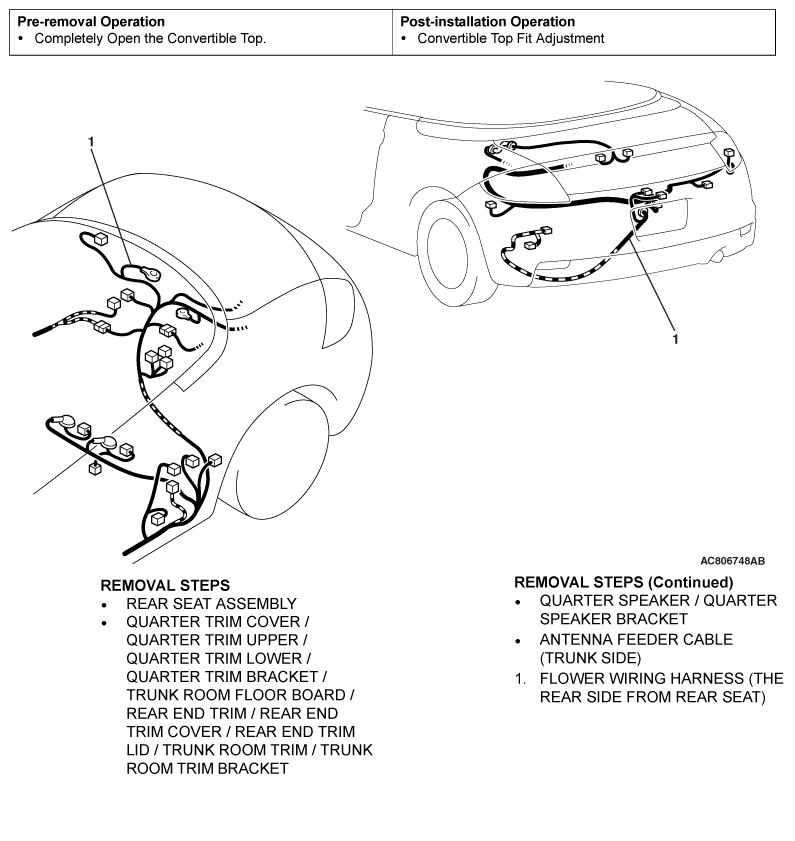

Fig 1: Removal/Installation Of Convertible Top Assembly (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

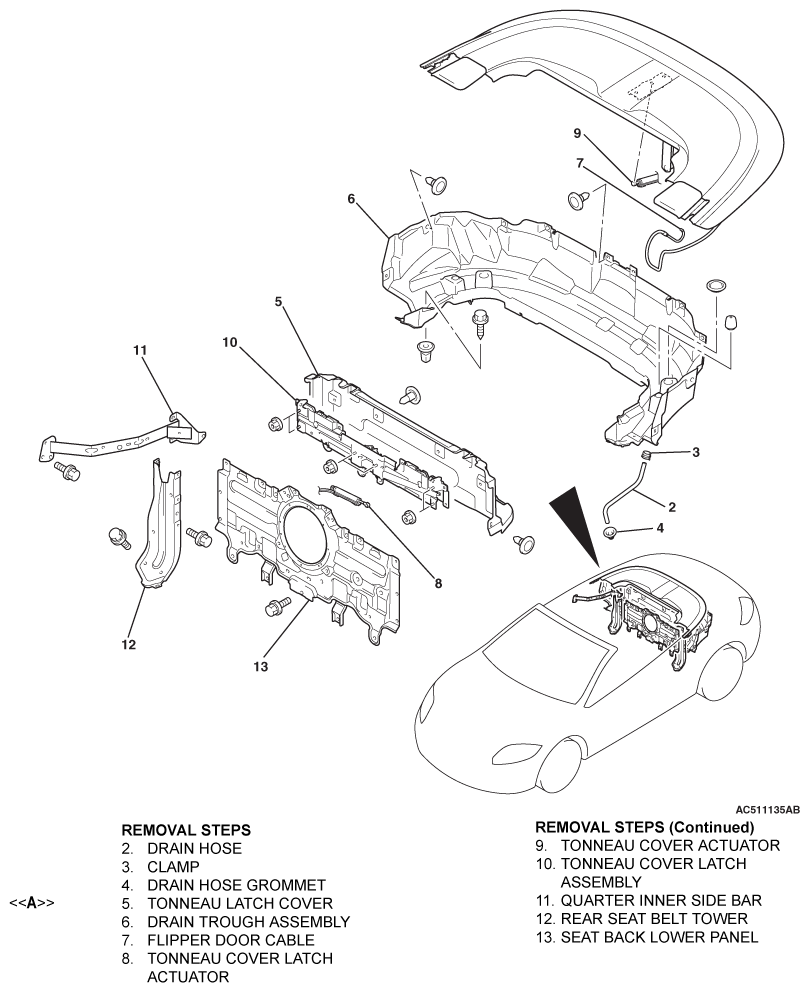

Fig 2: Removal/Installation Of Convertible Top Assembly (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

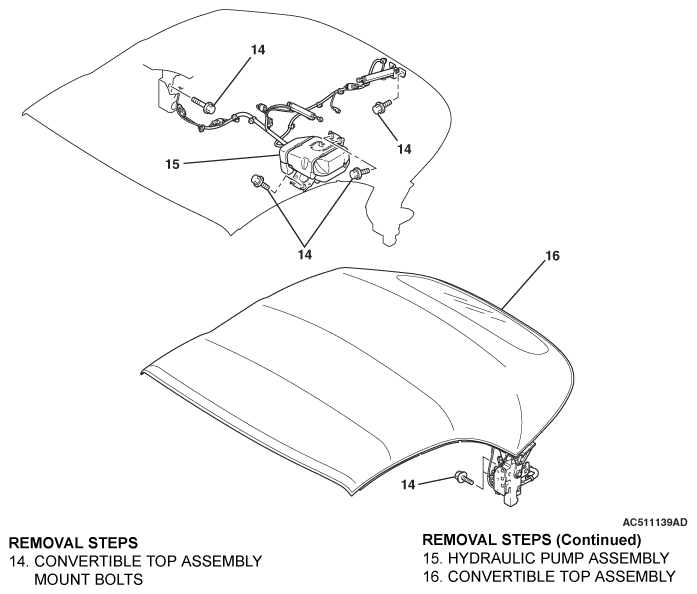

Fig 3: Removal/Installation Of Convertible Top Assembly (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
