Home >> Mitsubishi >> 2012 >> Eclipse GS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Ignition Coil >> Removal And Installation <2.4L Engine>

Removal And Installation <2.4L Engine>

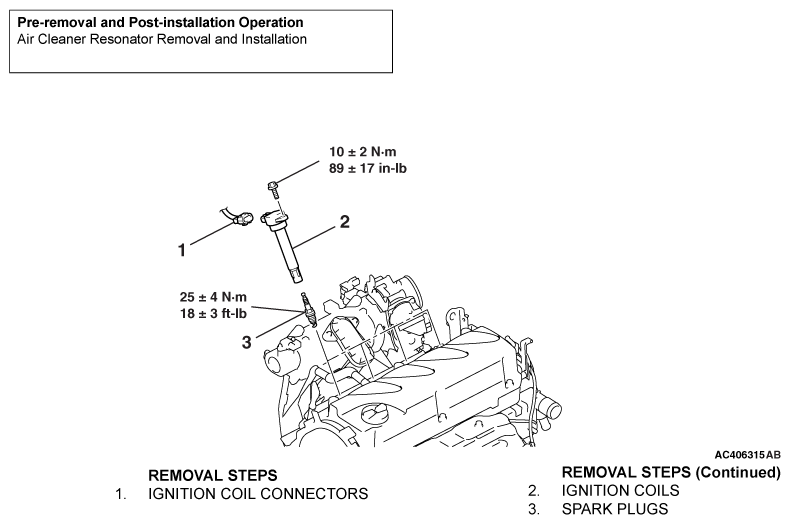

Fig 1: Removal/Installation Of Ignition Coil With Torque Specifications (2.4L Engine)

G06692022

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
